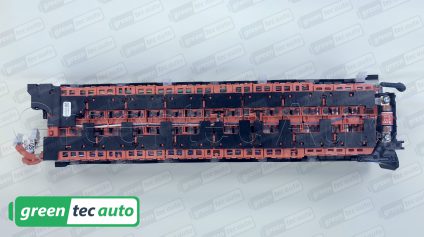

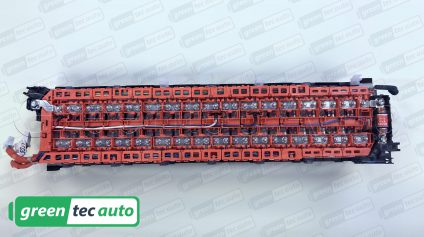

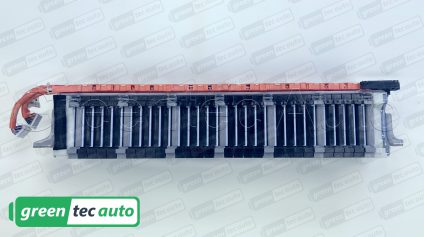

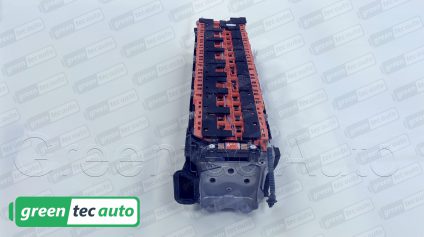

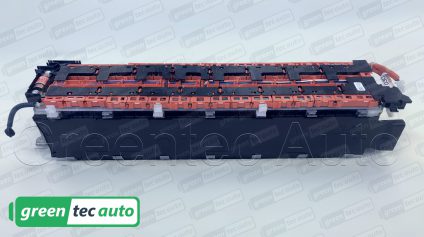

MODULE SPECIFICATIONS
Number of cells | 32 |
Construction | 32 in-series |
Length/Total Length | 25" |
Width | 7 1/4″ |
Height | 5" |
Weight | 33 lbs |
CELL SPECIFICATIONS
Cathode material | LiNiO2 |
Average voltage | 3.7VDC |
Maximum Voltage | 4.2VDC |
Minimum Voltage | 3VDC |
Terminal Thread | M5 0.8 |
Amp Hour | 5.5 Ah |
Peak current | 80A |
Continuous current | 50A |
Length | 4 1/4" |
Width | 5/8" |
Height without terminals | 3 3/4" |
Height with terminals | 4 1/2" |
Tj Colleran (verified owner) –
I think this was the fastest shipped item I have ever received
Well packed everything looks clean and flawless very satisfied with the whole experience will be buying more
All cells where at 3.4 volts
Definitely 💯
Ryan Collins (verified owner) –
Great price and fast shipping. Very informative throughout the whole process. I would recommend.
