Sale!

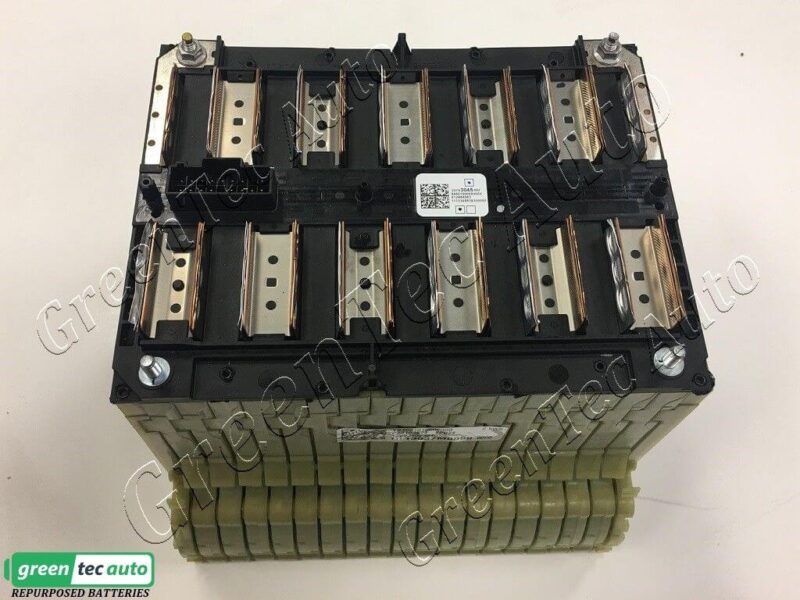

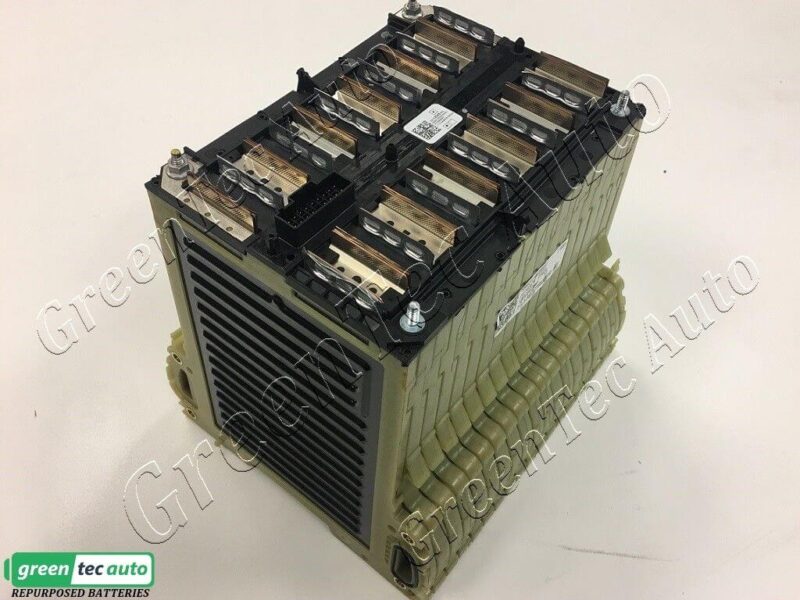

Chevy Volt NMC 48V 40Ah 2kWh Battery Module

(1 customer review)

Original price was: $250.00.Current price is: $150.00.

-

Chevy Volt modules to be used in Second Life only. Tested and found to be below the minimum to work in the Chevy Volt.

Price per kWh: $250/kWh $150/kWh

Years: 2011-2015

Shipping: Free Ground

Warranty: 6 Months, Extendable

These Chevy Volt modules have gone through our testing process and did not meet our standards to be used in the vehicle. Why let all that testing go to waste? These modules are capacity checked and IR checked, they will be labeled on the battery you receive. Capacity will be between 20Ah and 22Ah. All the cells will be in good working order and almost ready for your second life application. We will provide a plug for you to wire in a BMS. This will not come with the battery cover. You will want to compress the modules before using them.

Repurposed EV Battery Use: Whether you want to do off grid solar, Golf cart conversions, EV build, electric conversion car, ATV, Motorcycle, Bicycle, RV solar, and anything else that needs a 48V battery these Chevy Volt Battery modules will put out a lot of power and long cycle life. Tired of Lead Acid and AGM battery not performing? These repurposed EV battery Lithium Ion battery packs with plenty of power will put them to shame.

MODULE SPECIFICATIONS

Number of cells 36
Construction 12 in-series x 3 in parallel
Length 9.5"
Width 9.5"
Height 10.5
Weight 45 lbs
Output terminal M6 nut
Amp Hour 47
Total Voltage 48vdc

Module voltage range
Maximum: 50.4V
Nominal: 45.6V
Minimum: 36V

CELL SPECIFICATIONS

Cell type Laminate type
Cathode material LiMn2O4 with LiNiO2
Anode material Graphite
Rated capacity (0.3C) 17 Ah
Average Voltage 3.8 VDC
Maximum Voltage 4.2VDC
Minimum Voltage 3.0VDC

1 review for Chevy Volt NMC 48V 40Ah 2kWh Battery Module

  1. Martha Sands (verified owner)

    These batteries are awesome. I want to buy more!!!
