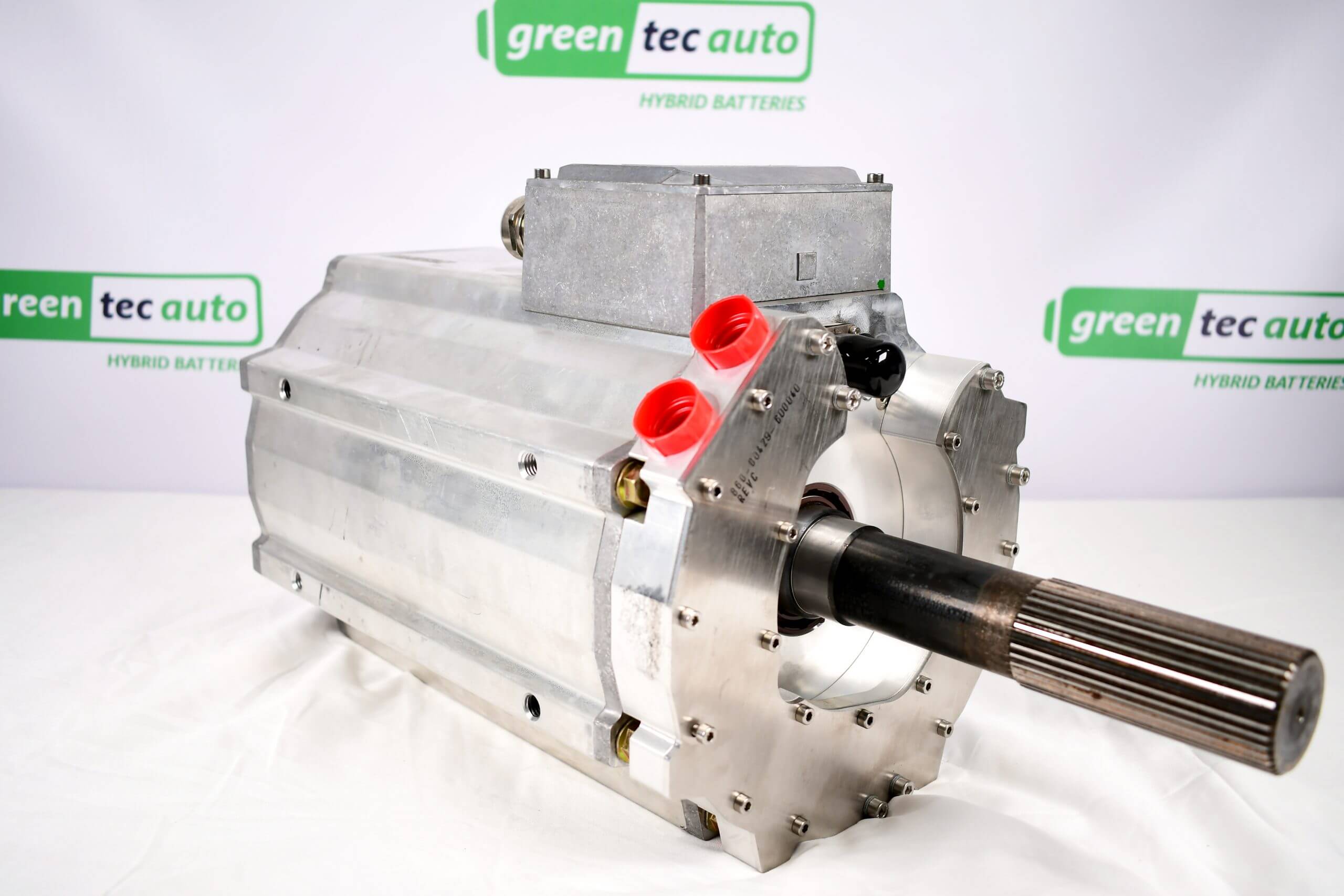

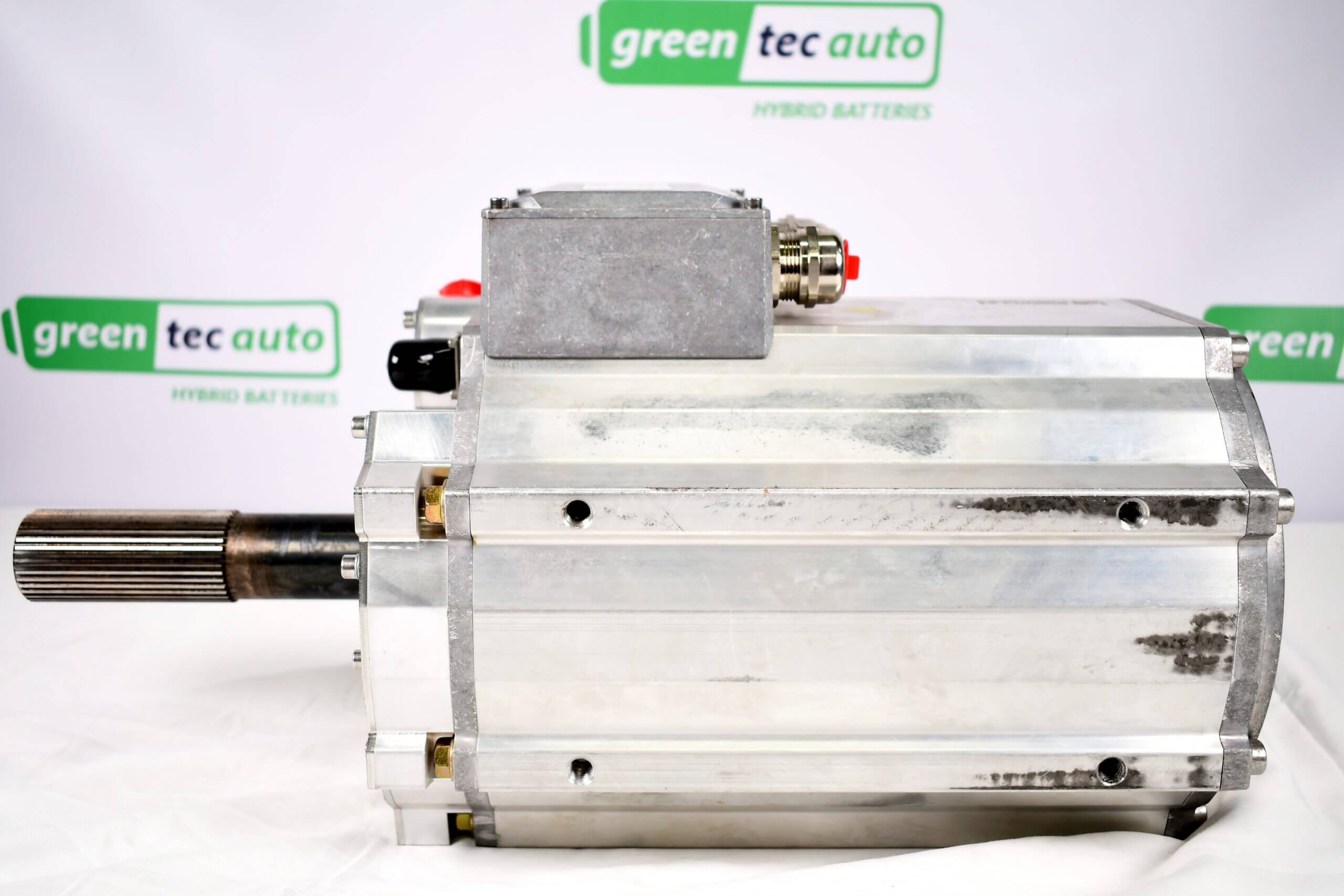

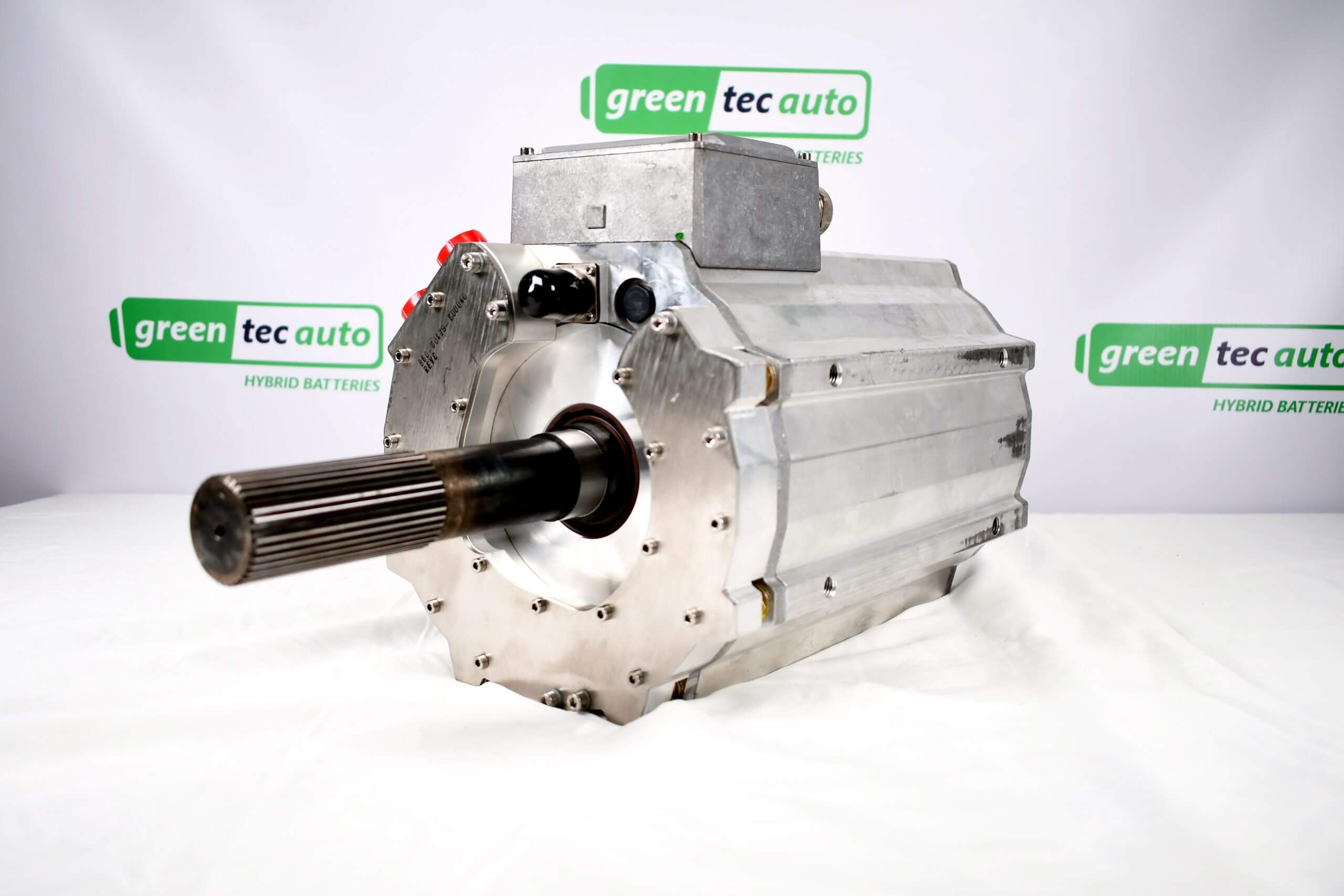

Parker Hannifin motor C-GVM-210150XXX-600040

$3,000.00

-

Parker Hannifin Corp Motors

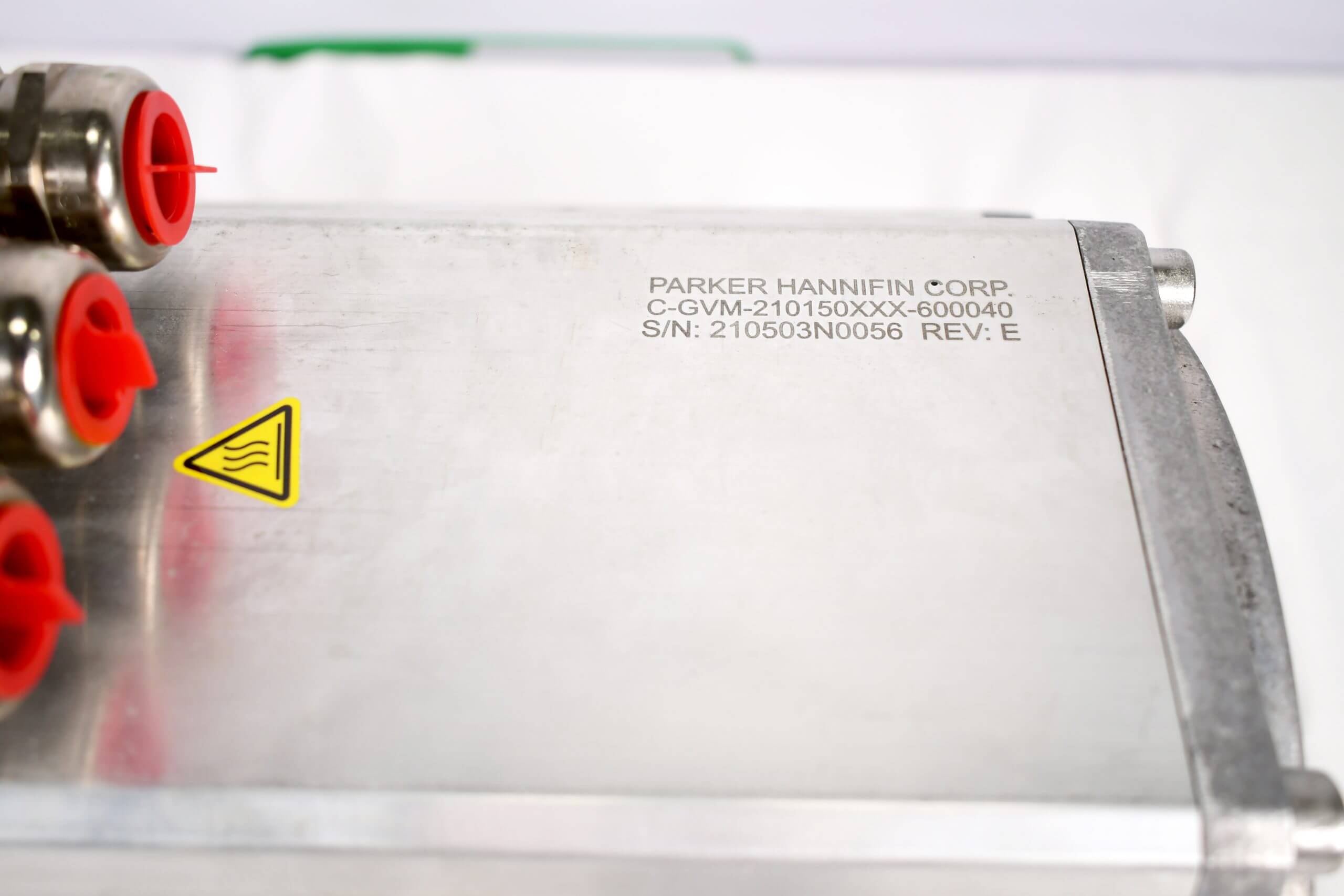

C-GVM-210150XXX-600040

S/N: 210503N0056

Warranty: 1 Month

Brand New Parker Hannifin motors. 150kW output. These were purchased from a conversion company that no longer needed them. Brand new, never used before.

There are 8 motors per crate, Shipping needs to be freight to commercial address or freight terminal pickup. Residential delivery is possible for an additional delivery fee. Contact us for a quote. We could ship them to one of our locations for in-shop pickup.

If you are looking for a deal we could work something out with large quantities.



Specifications:

72 Series Motor

  • Rear of motor = GM Slip Yoke – 35/36 Spline 1480 Series – PN 40058825
  • Front of motor = 3C3Z will bolt on to splined shaft



78 Series Motor

  • Rear of motor = 1410 Series Slip Yoke – PN 4C2Z-4841 or PN 3-3-7041X
  • Front of motor = 3C3Z will bolt on to splined shaft



40 Series Motor

  • Rear of motor = GM 6L90 Transmission Yoke – PN 4103-368
  • Front of motor =



*Info on the motors is the same for all three

SPLINE DETAIL INTERNAL
FLAT ROOT MAJOR DIAM. FIT ANSI B92.1 CLASS 7
NUMBER OF TEETH 36
SPLINE PITCH 24/48
PRESSURE ANGLE 30°
BASE BIAMETER 1.299039 REF
PITCH DIAMETER 1.500000 REF
MAJOR DIAMETER 1.547/1.548
FORM DIAMETER 1.4579
MINOR DIAMETER 1.462/1.467
CIRCULAR TOOTH THICKNESS 0.06545
MAX ATCUAL SPACE WIDTH 0.0789
MIN ACTUAL SPACE WIDTH 0.0775



MOTOR DATA @ 260 VDC
MOTOR PARAMETERS UNITS VALUE
WINDING TEMP AT RATED LINE CURRENT °C 140
KILOWATTS - KW RATED KW 33.1
MAX. OPERATING SPEED - N MAX RPM 8000 (MECHANICAL
SPEED @ RATED TORQUE - N RATED RPM 1970
CONTINUOUS RATED TORQUE @ RPM IN-LB3[Nm] 4059.4[119.70]
CONTINUOUS STALL TORQUE IN-LB3[Nm] 1295.8[146.42]
CONTINUOUS RATED LINE CURRENT A(rms) 87.8
PEAK TORQUE - Tpk IN-LB3[Nm] 2593.1 [293.01]
PEAK CURRENT A(rms) 222.3
TORQUE SENSITIVITY - Kt IN-LB3/AMP[Nm/A(rms)] 12.013 [1.662]
BACK EMF (LINE TO LINE) - ∓10% Vrms/Krpm 100.51
D.C. RESISTANCE (P-P) - ∓10% OHMS 0.0894
INDUCTANCE (P-P) - ∓10% MILLIHENRIES 1.319
ROTOR INERTIA IN-LB3-3EC²[Kg-MF] .2145 [.02424]
# OF POLES 12

Shipping:  Free Local pickup at one of our locations, or freight($200) shipment only. Call for Residential.

Warranty: 1 Month
