More Info:

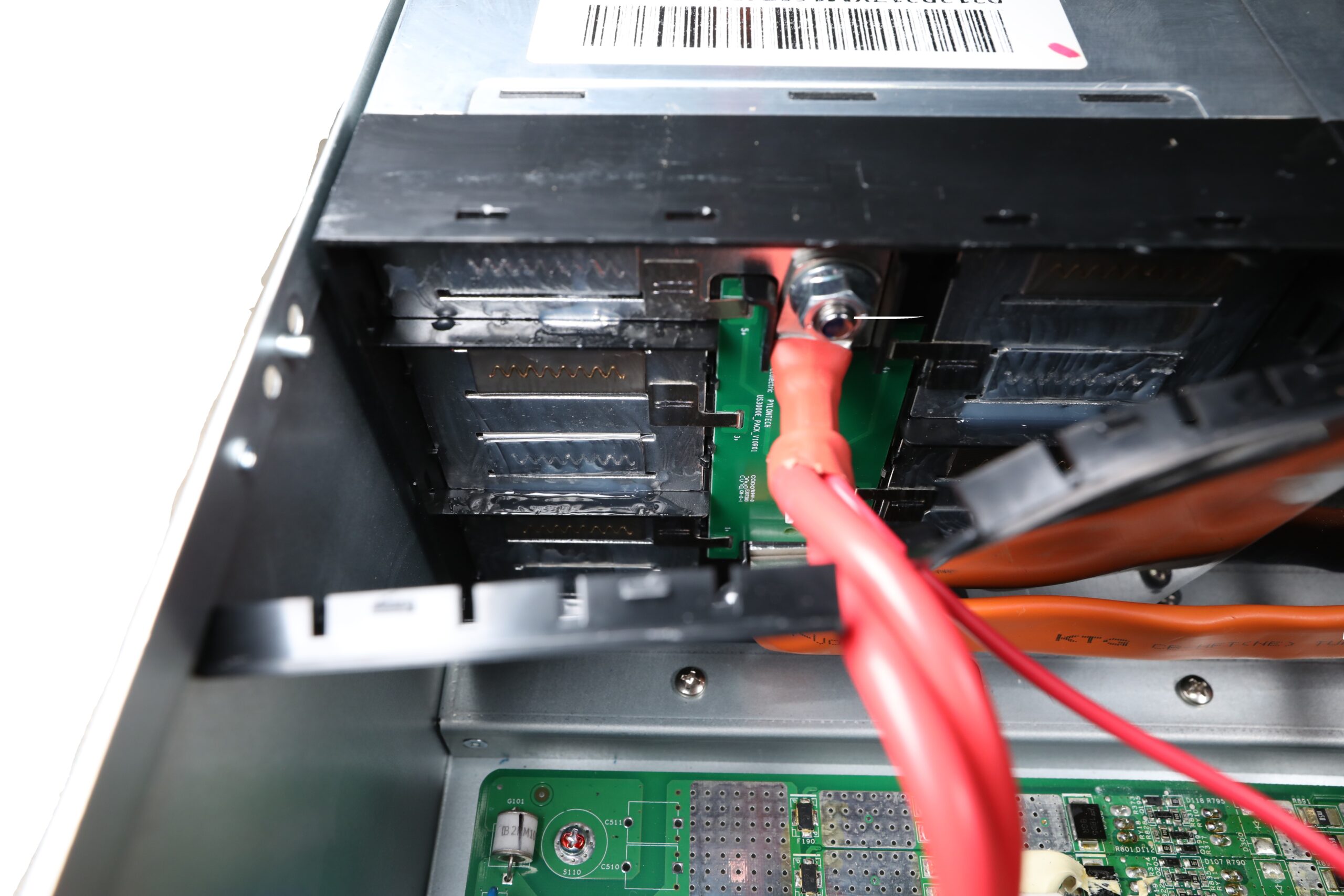

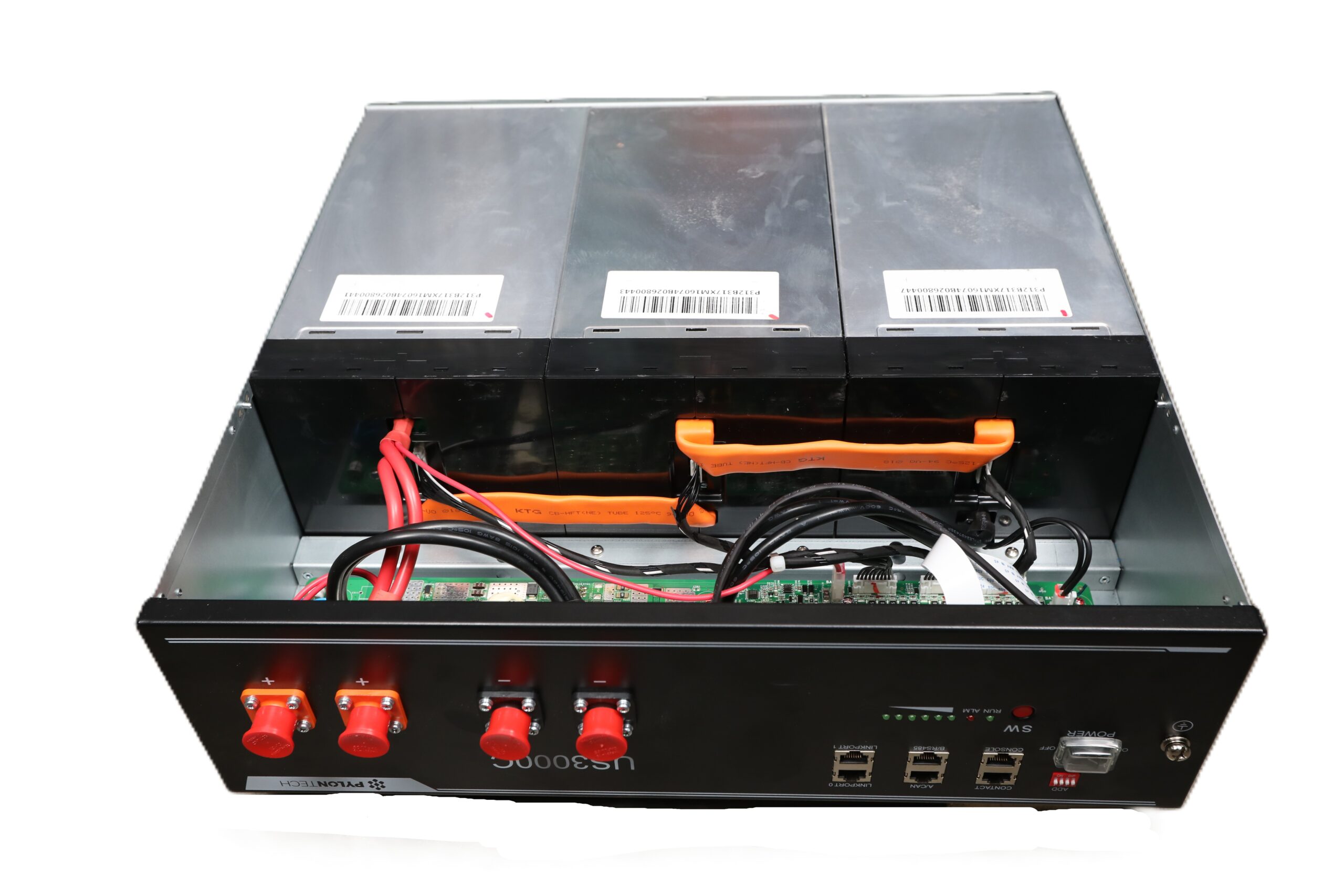

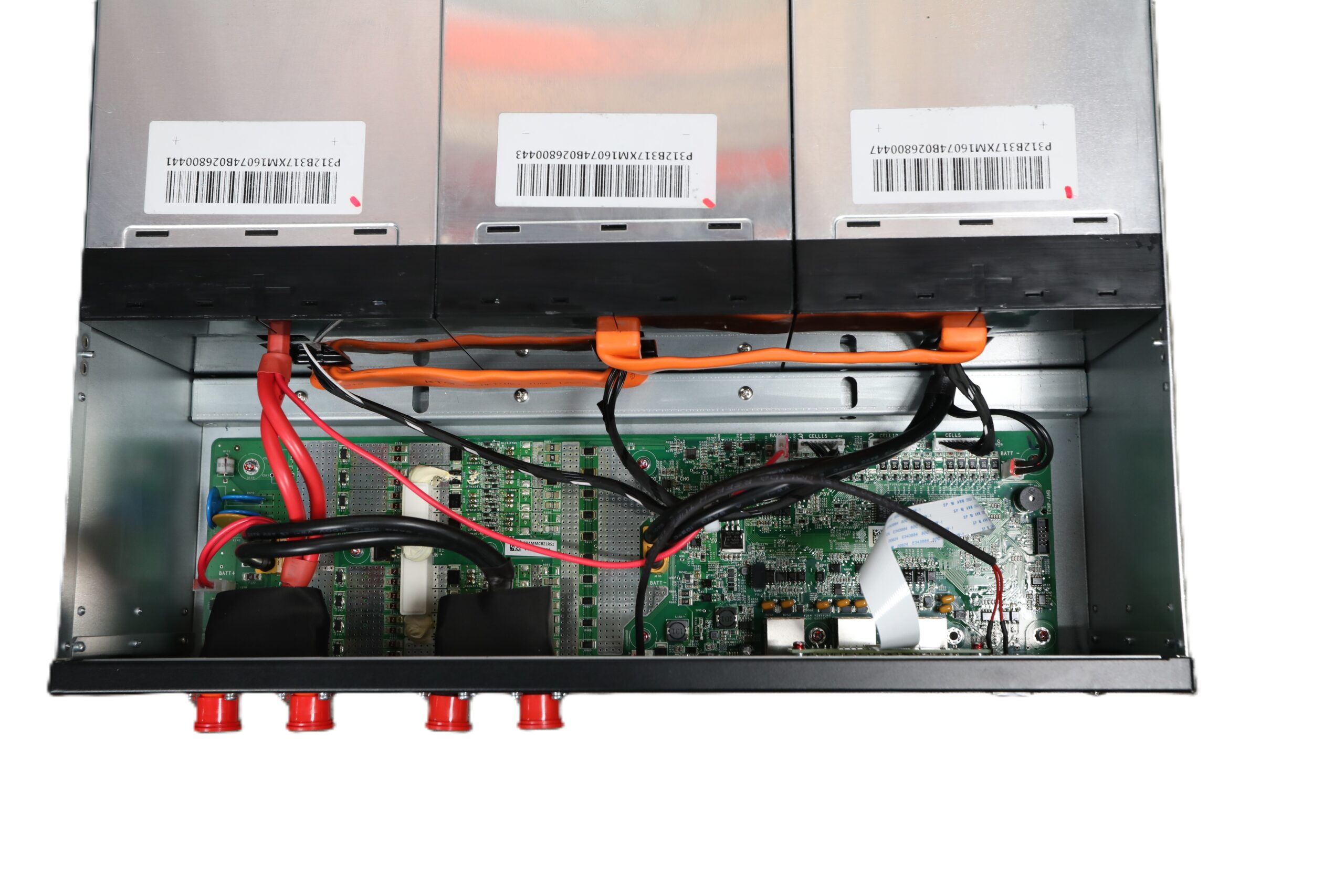

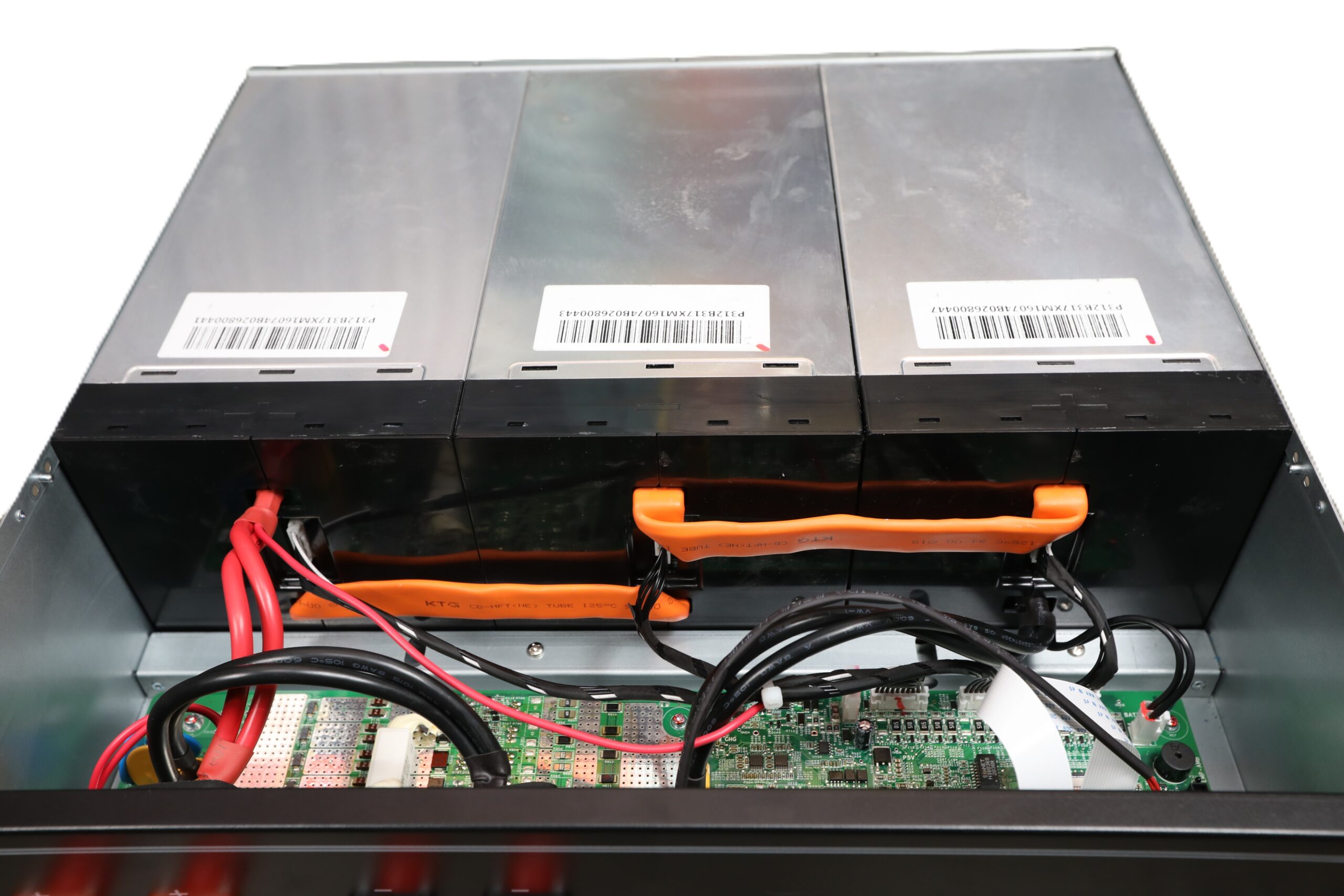

This PYLONTECH US3000C battery pack has robust cells, but not such a robust BMS. Online reports have shown that the BMS has been failing within weeks or even days of installing. The rest of this battery is in great condition and there is plenty of room inside to hook up your own 15S BMS for your application. The battery pack has 3 modules inside that can be removed, the main connections of the 3 modules have screw terminals, but the cells inside these packs are laser welded. Each module inside is 5S2P, so rearranging into a higher or lower voltage battery is possible to some degree. These are old inventory that was never used, so the BMS might still work, but we are not warrantying the BMS at all, we are expecting you to install your own before using the battery. You can find connecting cables and communication cables here. We do not have the handles for server rack mounts. I’m not sure if any off the shelf will work directly, but if you are willing to drill some holes I’m sure you can make something work.

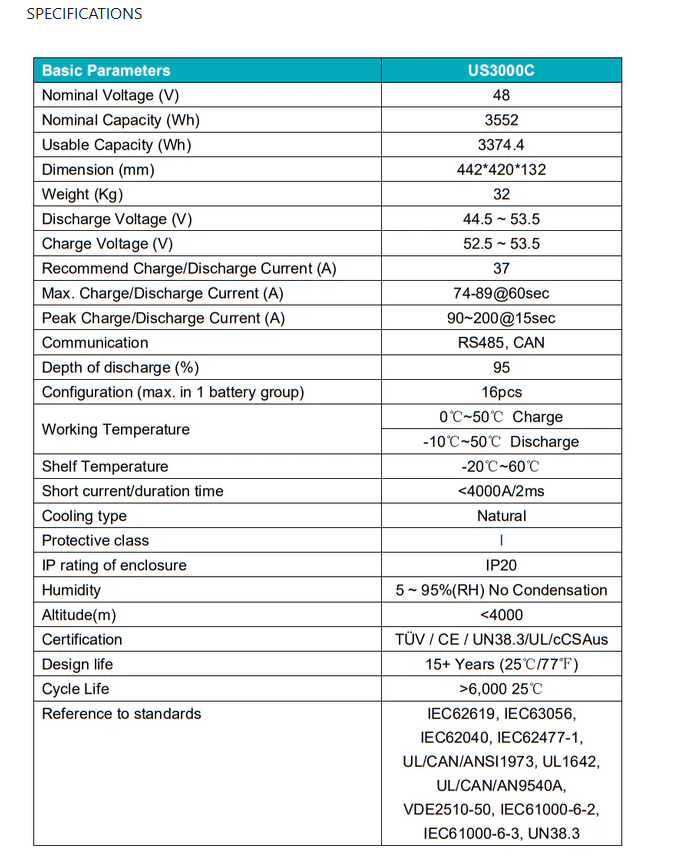

Module Info
Configuration: 15S2P
Max Voltage: 53.5V
Nominal Voltage: 48V
Minimum Voltage: 44.5V
Continuous Discharge/Charge: 37A
Max Discharge/Charge: 90A @ 60 sec
Peak Discharge/Charge: 200A @ 15 sec
Cell Info
Max Voltage: 3.56V
Nominal Voltage: 3.2V
Minimum Voltage: 2.95V
Module Size
Length: 16 5/8 inches
Width: 17 3/8 inches
Height: 5 1/8 inches
Weight: 69 lb
