These modules will have the Valance warranty sticker over the BMS cover intact, none of them were opened or reset. These modules were not bad ones we restored, they were always good that we have maintained. The BMS does draw power from the module during normal operation. If left in storage for over a month, keep an eye on the voltage and top off the battery periodically.
NOTE: Some battery modules may come with cracks around the terminals.
Batteries were tested under real world conditions. Charged to 14.6V with a 7A cut-off. Battery voltage settles and we discharge at 40A until it reaches 10V. This represents actual real world usable capacity. Whole test takes 5 hours.
LED indicator guide
Green: all good.
Yellow(looks like red and green): Charge level less than %20SoC recharge immediately, or battery is near thermal limit and is close to overheating.
Red: Low Charge level or issue with the battery or BMS.
No Light: Battery charge depleted to %0 and BMS shut off.
BMS will automatically balance the cells within one module during the top of the charge. Will not balance between modules when hooked up in series, only in parallel. If wiring these modules in series, please see the balancer we have listed to keep your batteries balanced. You would need the 12V version, one for every module you have in series.

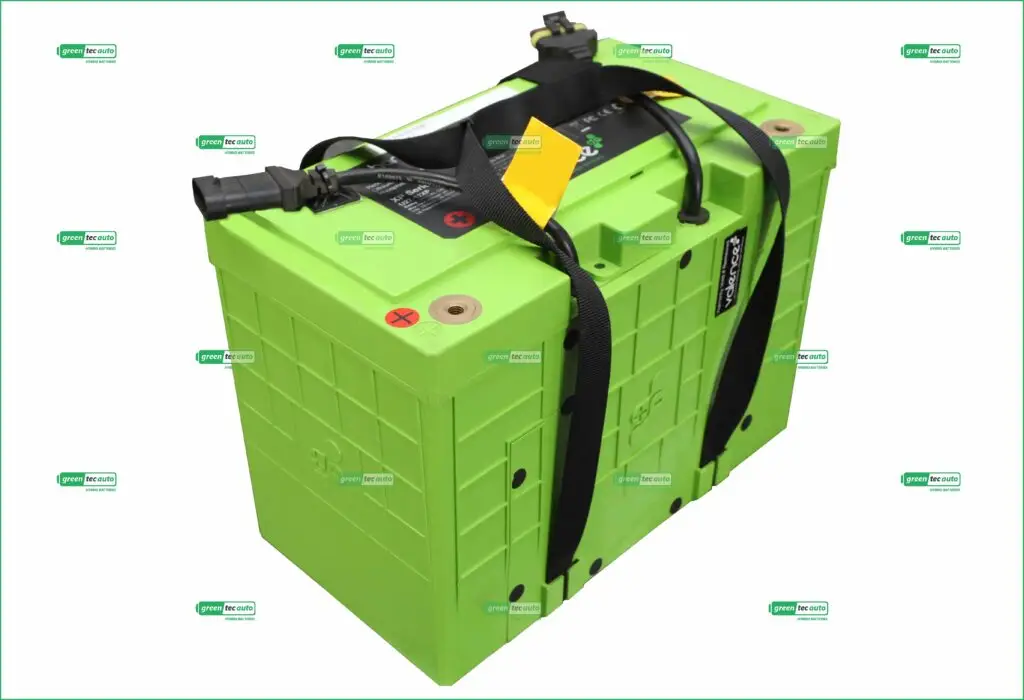

Lithium Werks provides safe, reliable and mobile energy solutions for energy storage and transportation. The U27-12XP is a high-performance, 12 volt battery, built on a patented Lithium Iron Phosphate chemistry platform providing over 1.7kWh. Current battery test results are coming back between 106Ah and 110Ah, batteries will be grouped within a few Ah of each other as available.
Specifications
Voltage (nominal) 12.8 V
Capacity @ C/5, 25 °C (typical) 138 Ah (New)
Energy 1.76 kWh (New)
Discharge Cont./Peak (30 sec) 150 A / 300 A
Discharge Cutoff Voltage 10 V
Recommended Charge Voltage 14.6 V
Charge Float Voltage Range 13.8 - 14.6 V
Recommended Charge CCCV ≤ 72 A to 14.6 V
Discharge Temperature -10 °C to 50 °C
Charge Temperature 0 °C to 45 °C
Self Discharge @ 25 °C < 2% per month
Terminal Hardware M8 x 1.25
Terminal Torque 25 Nm 222 in-lbs
Plastic Case Flame Retardant
IP Rating IP56
Features
• >4000 cycles at 80% DOD
• Create systems 12 - 1000 V
• Series and/or parallel operation
• Automatic cell monitoring & balancing
• Temperature monitoring of cells
• Rugged mechanical design
• Thread locking feature
• Footprint of Group 27 lead acid case
• Maintenance-free
• No hydrogen generation or gassing
Height: (excluding bolts) 225 mm 8.86”
Width: 172 mm 6.77”
Length: 306 mm 12.0”
Weight: 19.2 ± 0.1 kg 42.2 lbs
Cell Configuration: 4IFpR27/66-44
Price Chart
Prices varied by kWh of modules.
| Valence U27-12XP | Price/kWh | 200 | Valence U27-12XP | Price/kWh | 200 | |
| Ah | kWh | Price/Module | Ah | kWh | Price/Module | |
| 90 | 1.152 | 230.40 | 115 | 1.472 | 294.40 | |
| 91 | 1.165 | 232.96 | 116 | 1.485 | 296.96 | |
| 92 | 1.178 | 235.52 | 117 | 1.498 | 299.52 | |
| 93 | 1.190 | 238.08 | 118 | 1.510 | 302.08 | |
| 94 | 1.203 | 240.64 | 119 | 1.523 | 304.64 | |
| 95 | 1.216 | 243.20 | 120 | 1.536 | 307.20 | |
| 96 | 1.229 | 245.76 | 121 | 1.549 | 309.76 | |
| 97 | 1.242 | 248.32 | 122 | 1.562 | 312.32 | |
| 98 | 1.254 | 250.88 | 123 | 1.574 | 314.88 | |
| 99 | 1.267 | 253.44 | 124 | 1.587 | 317.44 | |
| 100 | 1.280 | 256.00 | 125 | 1.600 | 320.00 | |
| 101 | 1.293 | 258.56 | 126 | 1.613 | 322.56 | |
| 102 | 1.306 | 261.12 | 127 | 1.626 | 325.12 | |
| 103 | 1.318 | 263.68 | 128 | 1.638 | 327.68 | |
| 104 | 1.331 | 266.24 | 129 | 1.651 | 330.24 | |
| 105 | 1.344 | 268.80 | 130 | 1.664 | 332.80 | |
| 106 | 1.357 | 271.36 | 131 | 1.677 | 335.36 | |
| 107 | 1.370 | 273.92 | 132 | 1.690 | 337.92 | |
| 108 | 1.382 | 276.48 | 133 | 1.702 | 340.48 | |
| 109 | 1.395 | 279.04 | 134 | 1.715 | 343.04 | |
| 110 | 1.408 | 281.60 | 135 | 1.728 | 345.60 | |
| 111 | 1.421 | 284.16 | 136 | 1.741 | 348.16 | |
| 112 | 1.434 | 286.72 | 137 | 1.754 | 350.72 | |
| 113 | 1.446 | 289.28 | 138 | 1.766 | 353.28 | |
| 114 | 1.459 | 291.84 | 139 | 1.779 | 355.84 |
Shipping: Free - the cost of shipping to you is included with your purchase. Freight to business address or pick up from a local freight hub only.
