Lot of 48 Gen2 Nissan Leaf Battery Modules 7.6V TESTED! 40AH FREE BusBar

$4,500.00 $3,500.00

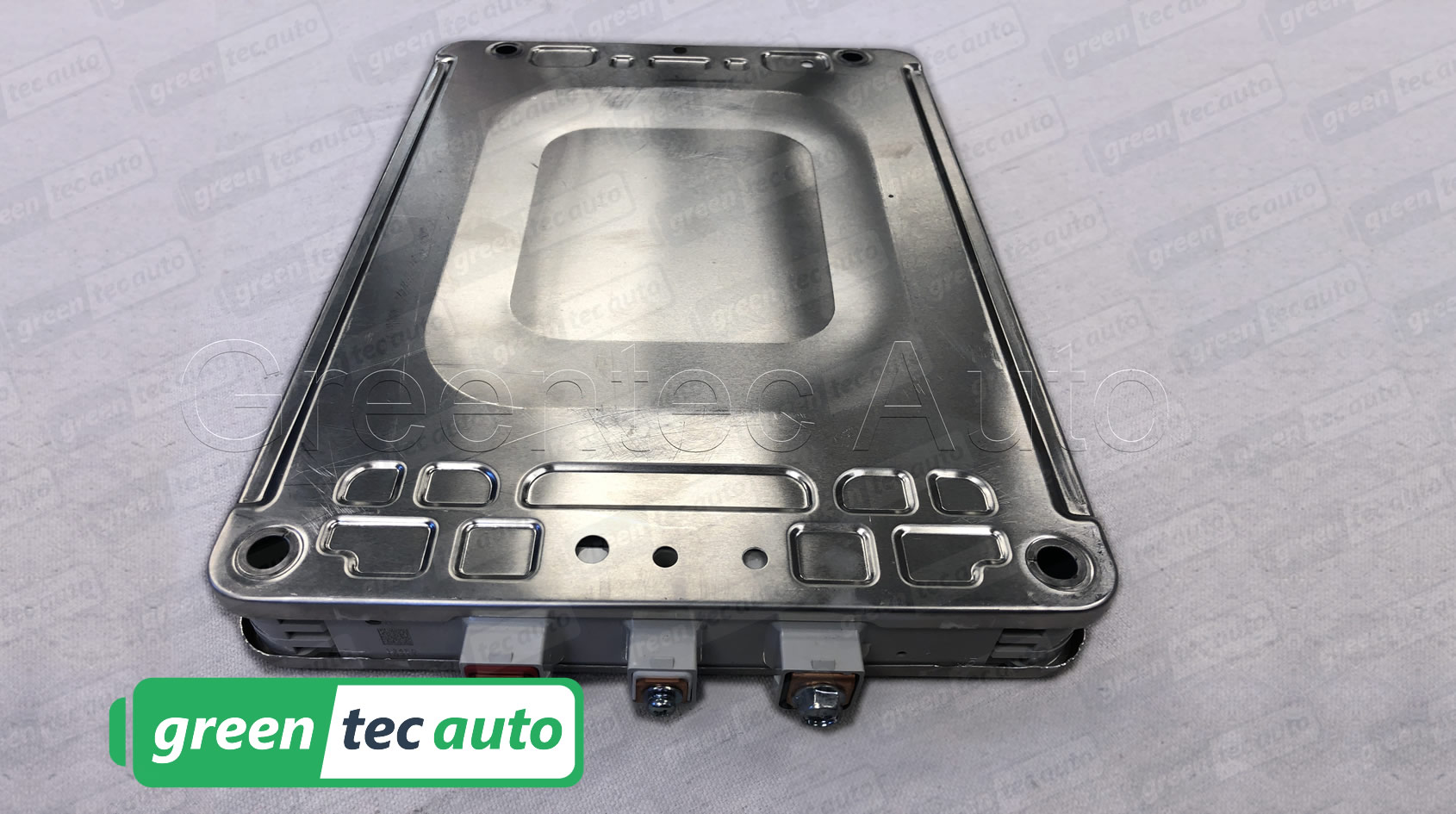

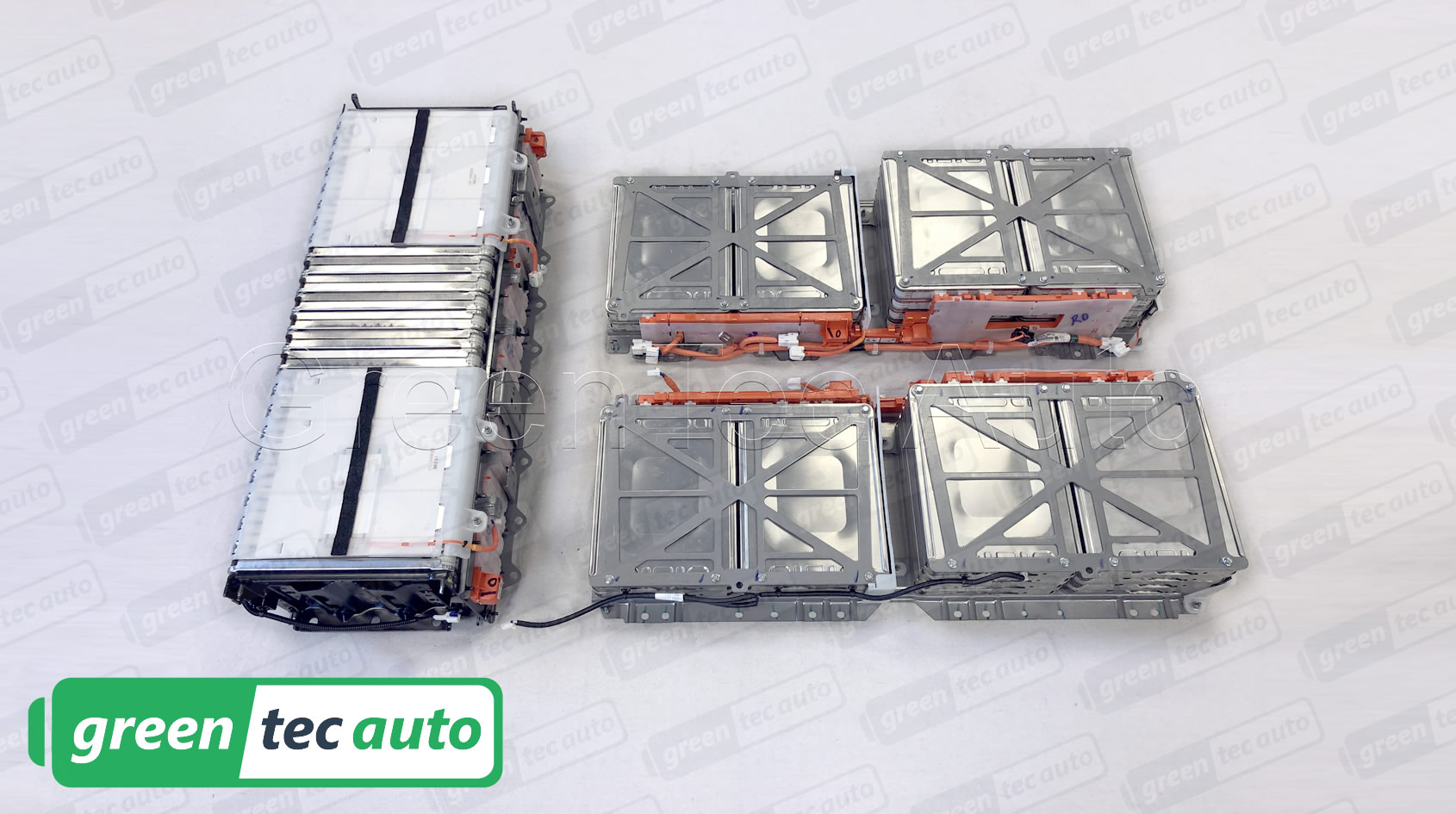

Gen 2 Used Nissan Leaf battery replacement modules 7.6V in a good condition. Nothing broken or bent. May have scratches on the shielding. The package includes:

  • 48 Nissan Leaf Battery Replacement G2 Modules 7.6v, 40Ah
  • Original OEM busbar
  • Spacers
  • Compression Plates

FREE SHIPPING:  Must be shipped to a business with forklift or loading dock or picked up from a local freight terminal. Available in 48 continental US states. HI and AK please call for pricing.

Warranty: 1 Month

Category: Nissan, Nissan LEAF, Repurposed EV Batteries
Tags: Gen 2 LEAF Battery, leaf battery replacement, Nissan LEAF, Nissan LEAF Battery Module, nissan leaf battery replacement, sale


These modules are rated at 7.6V 64Ah.
These cells came out of a salvaged Nissan Leaf.
Tested a random module at 50Ah. Tested from 8.4v to 5v at 22amps.
Will be shipped with bolts.


Type Laminated lithium-ion battery
Voltage 403.2V
Nominal voltage 360V
Total capacity 24 kWh
Power output Over 90 kW
Energy density 140 Wh/kg
Power density 2.5 kW/kg
Whole pack
61.8 x 46.8 x 10.4 in. (1570.5 x 1188 x 264.9 mm)
Whole pack
648 lbs
Number of modules 48, each with four cells (total 192 cells)


Number of cells 4
Construction 2 in-series, 2 in parallel
Length 11.9291" (303 mm)
Width 8.7795" (223 mm)
Height 1.3779" (35 mm)
Weight 8.3775 lbs (3.8 kgs)
Output terminal M6 nut
Voltage sensing terminal M4 nut
Module fixing hole diameter 0.3582" (9.1 mm)


Cell Type Laminate type
Cathode material LiMn2O4 with LiNiO2
Anode material Graphite
Rated capacity (0.3C)/td> 33.1 Ah
Average voltage 3.8V
Length 11.417" (290 mm)
Width 8.504" (216 mm)
Thickness 0.2795" (7.1mm)
Weight 1.7624 lbs (799 g)

There are 2 types of cells. Ones with positive on the left and ones with positive on the right  (see photo).
