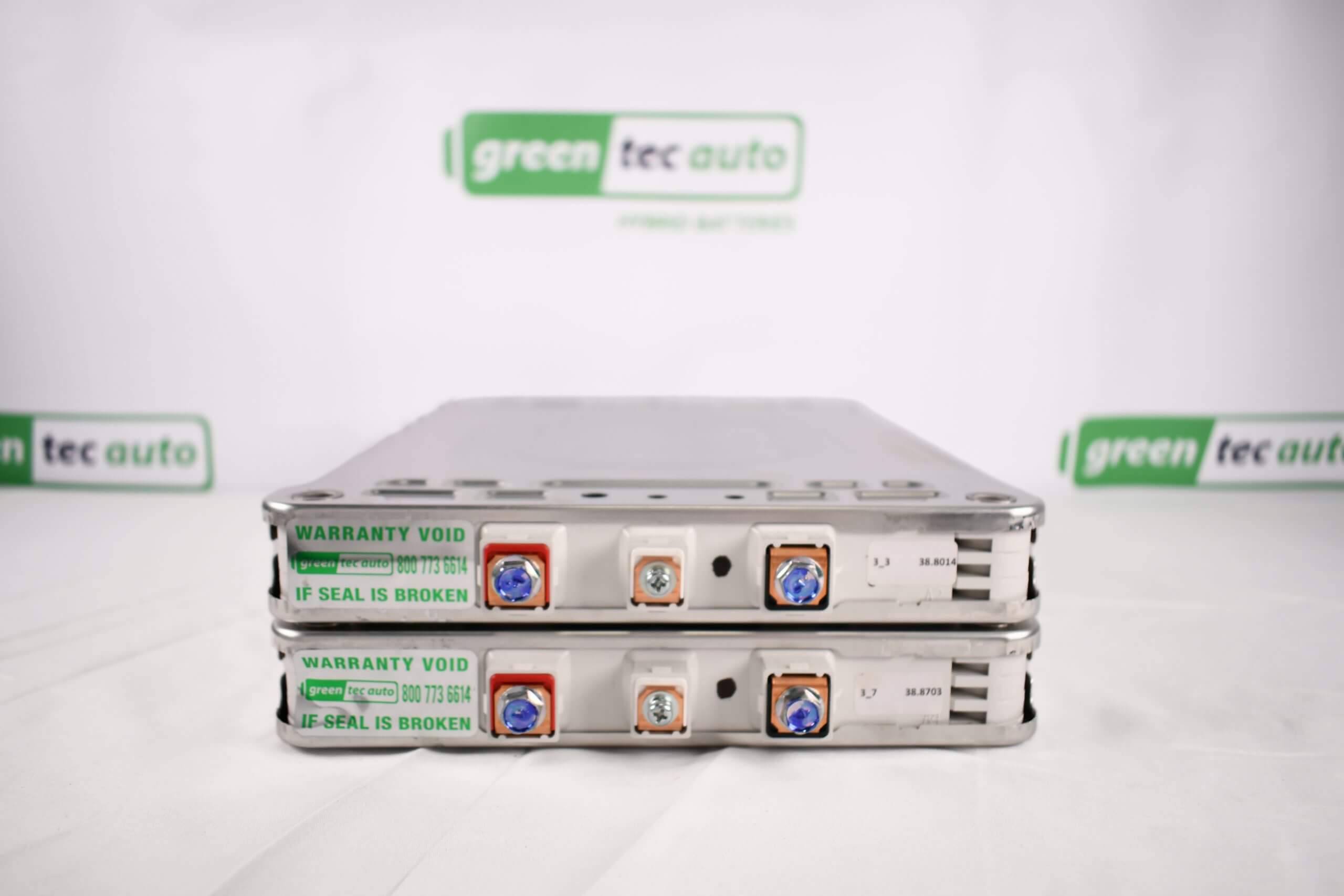

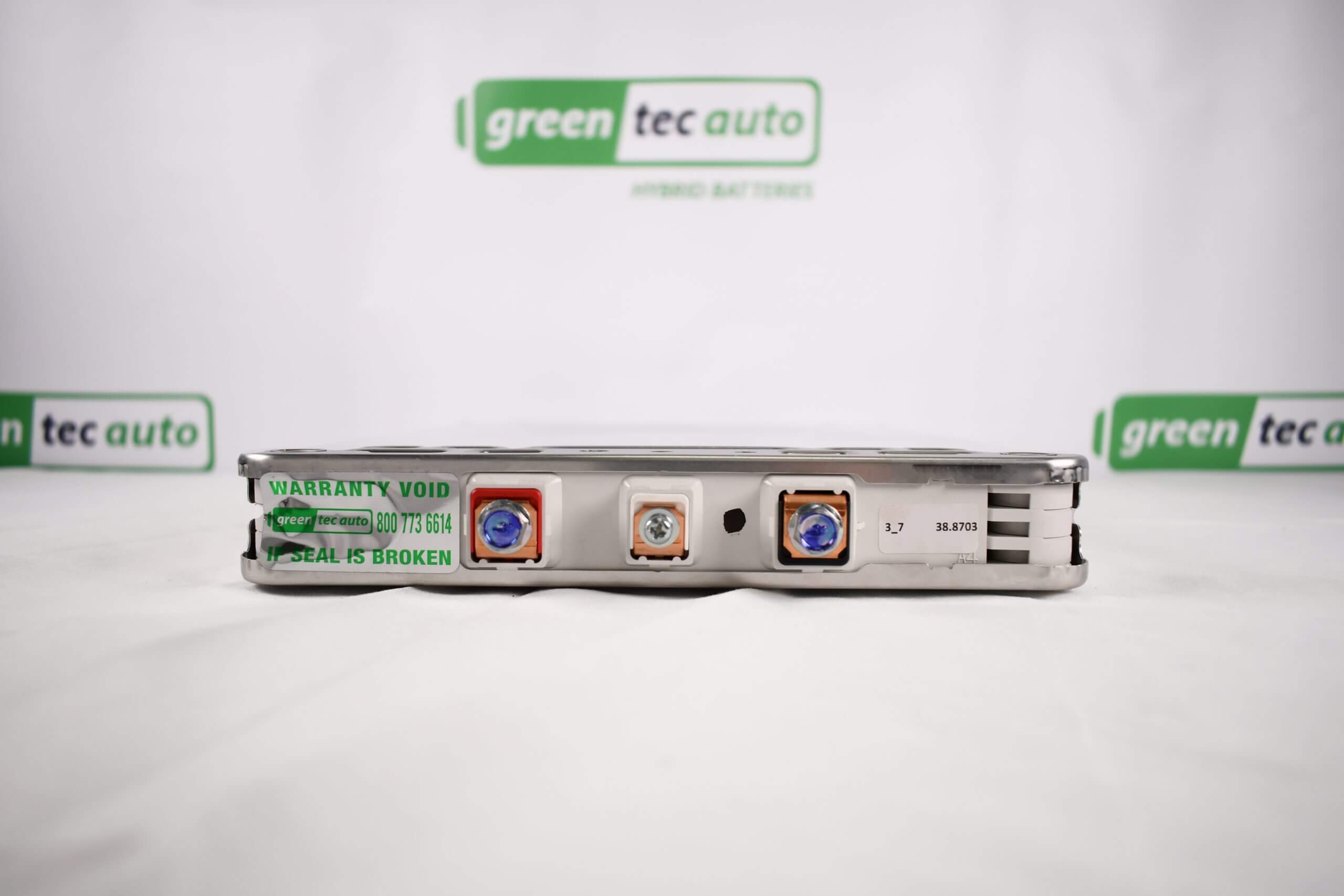

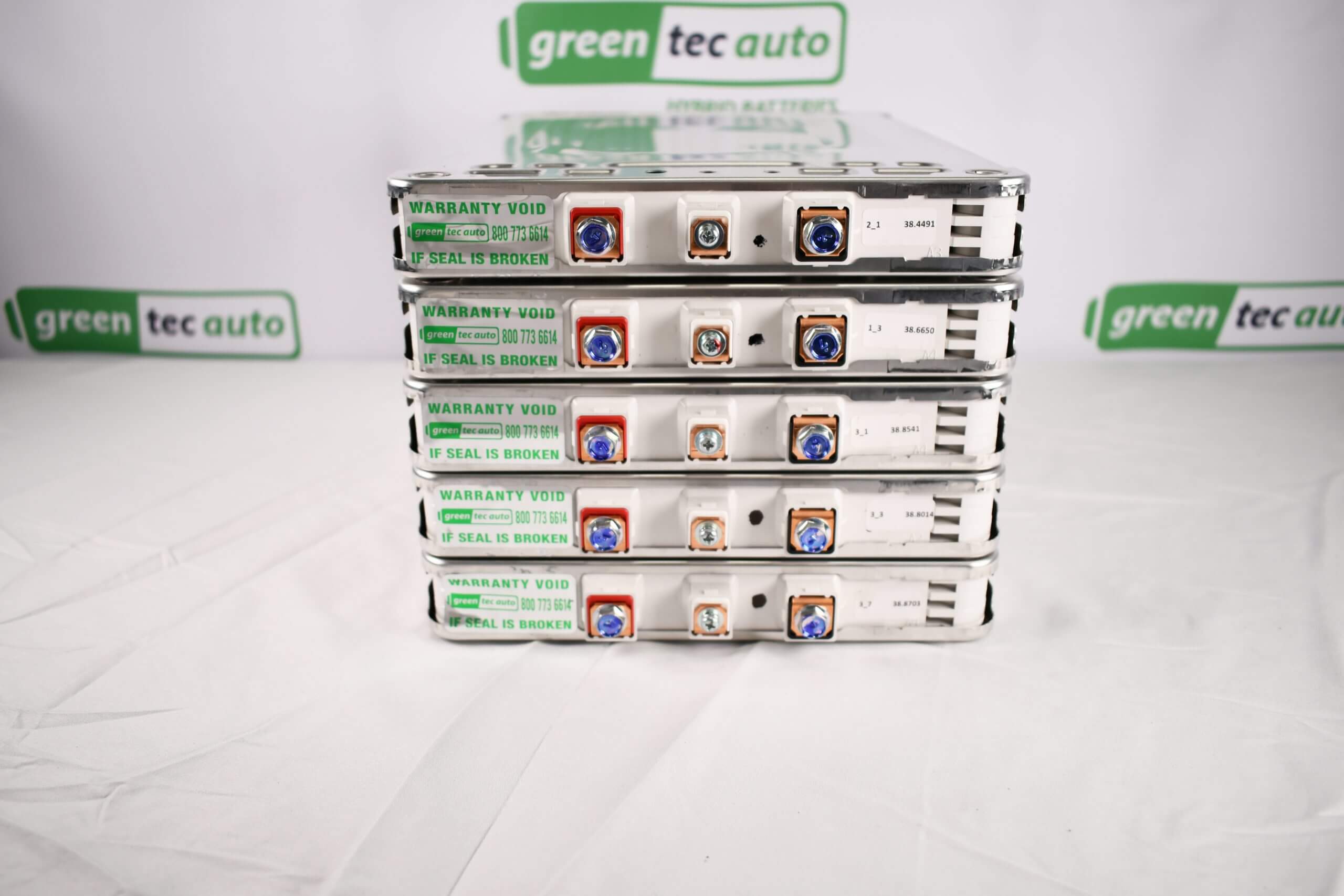

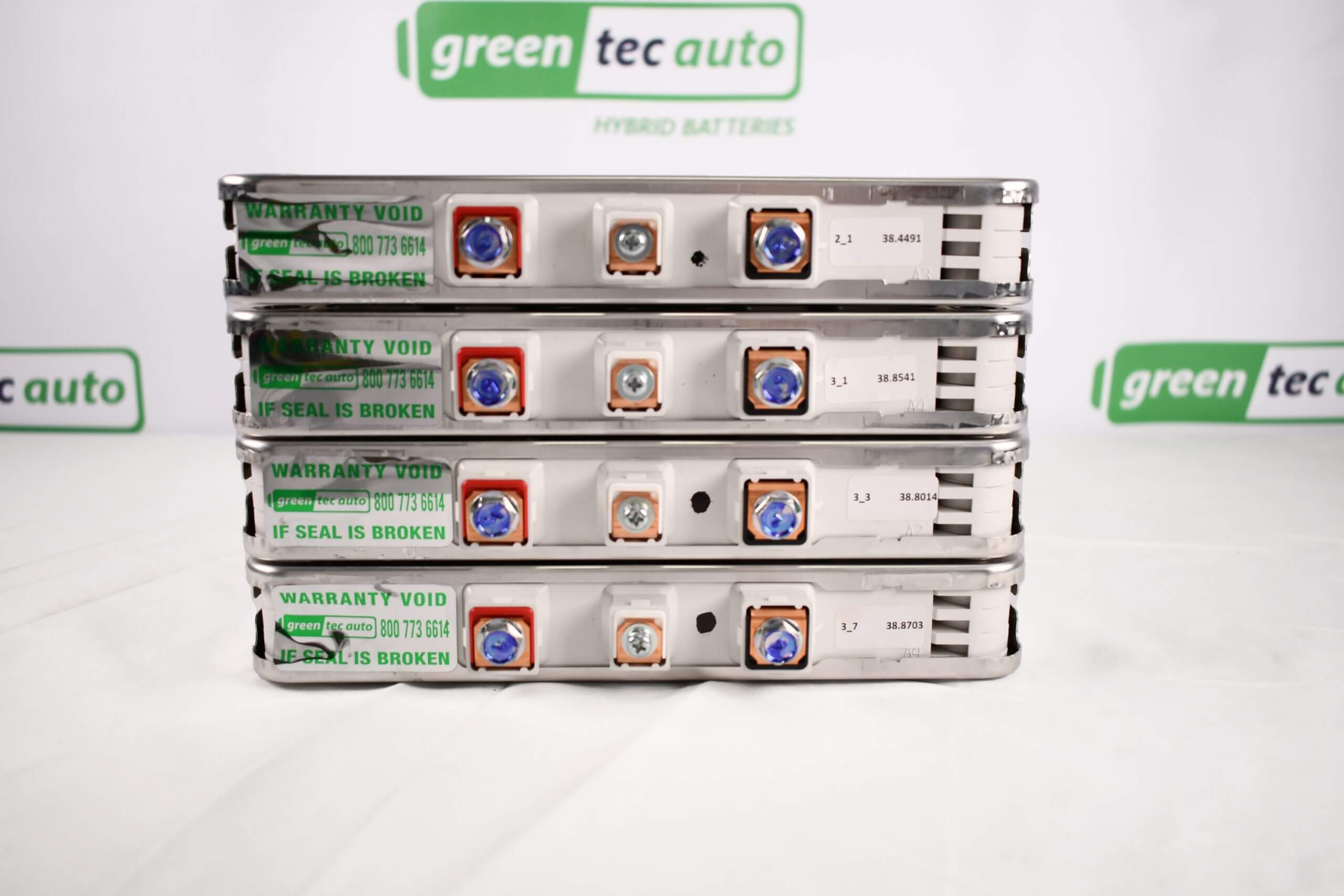

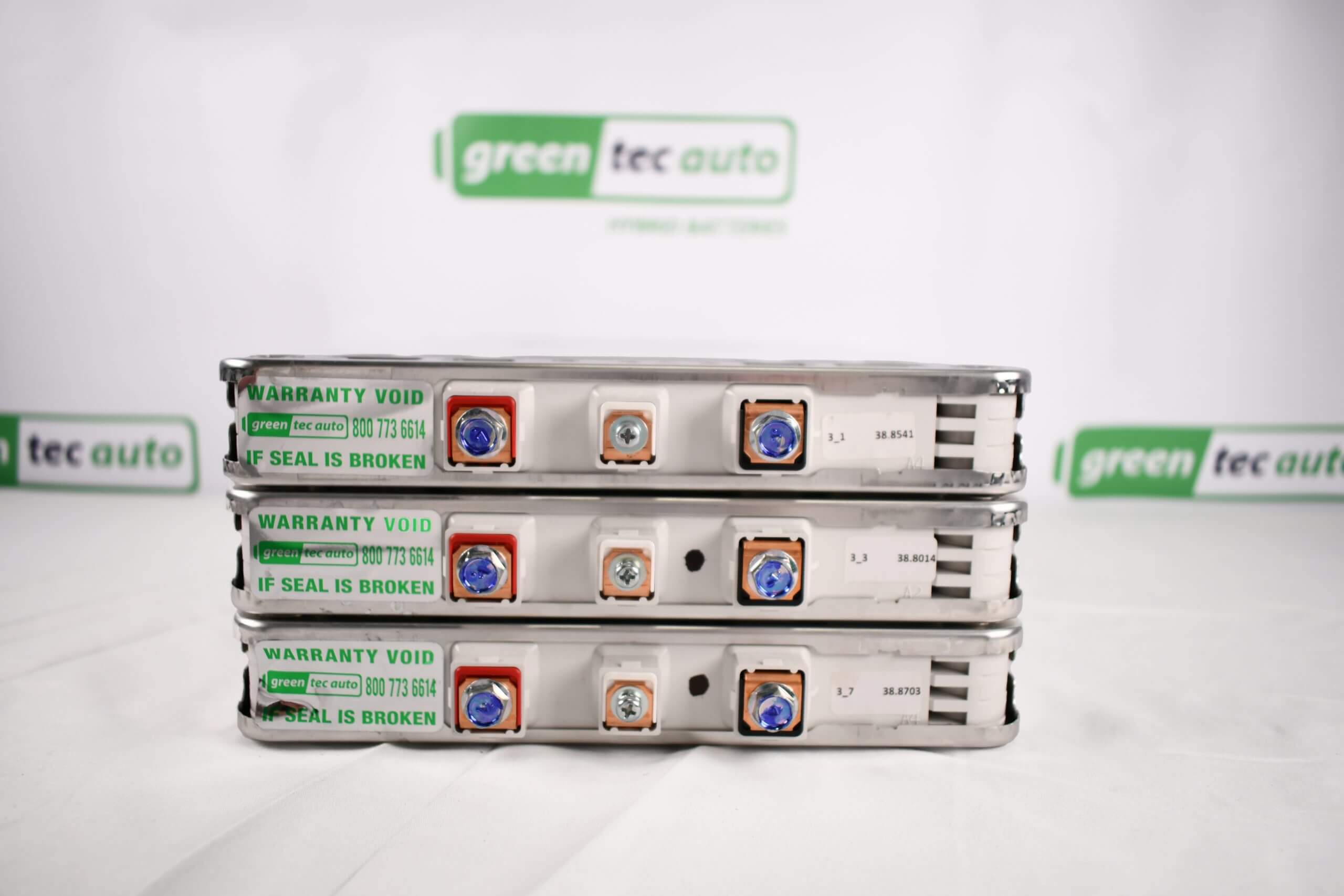

Each module is tested for actual capacity.
The test discharges the module from 8.3V down to 5V at 20A.
The resulting capacity will be labeled on the module so you will know the exact capacity of every module you receive.
We sort our modules based on the tested capacity and ship groups within 1Ah of each other, usually less. In large orders we might have a larger range.
- shipped with terminal bolts.
- Gen 2 cells are interchangeable (+) (-)
LITHIUM BATTERY LiMn2O4/LiNiO2
MODULE SPECIFICATIONS
| Number of cells | 4 |
| Construction | 2 in-series, 2 in parallel |
| Length | 11.9291" (303 mm) |
| Width | 8.7795" (223 mm) |
| Height | 1.3779" (35 mm) |
| Weight | 8.3775 lbs (3.8 kgs) |
| Output terminal | M6 nut |
| Voltage sensing terminal | M4 nut |
| Module fixing hole diameter | 0.3582" (9.1 mm) |
CELL SPECIFICATIONS
| Cell Type | Laminate type |
| Cathode material | LiMn2O4 with LiNiO2 |
| Anode material | Graphite |
| Rated capacity (0.3C)/td> | 33.1 Ah |
| Average voltage | 3.8V |
| Length | 11.417" (290 mm) |
| Width | 8.504" (216 mm) |
| Thickness | 0.2795" (7.1mm) |
| Weight | 1.7624 lbs (799 g) |
48 and Below Ship Ground G2 Modules | ||
| Ah | kWh | Price/Module |
| 30 | 0.222 | $34.41 |
| 31 | 0.229 | $35.56 |
| 32 | 0.237 | $36.70 |
| 33 | 0.244 | $37.85 |
| 34 | 0.252 | $39.00 |
| 35 | 0.259 | $40.15 |
| 36 | 0.266 | $41.29 |
| 37 | 0.274 | $42.44 |
| 38 | 0.281 | $43.59 |
| 39 | 0.289 | $44.73 |
| 40 | 0.296 | $45.88 |
| 41 | 0.303 | $47.03 |
| 42 | 0.311 | $48.17 |
| 43 | 0.318 | $49.32 |
| 44 | 0.326 | $50.47 |
| 45 | 0.333 | $51.62 |
Connect Your Modules
Three copper busbar segments that allow you to wire a 10p14s battery bank using Nissan Leaf modules.
You might also need these:
Buying multiple modules and want to create a series? This product is often bought with our copper Nissan Leaf Bus bar kit. The kit contains three copper busbar segments that allow you to wire a 10p14s battery bank using Nissan Leaf modules.
EDWIN THOMPSON (verified owner) –
All modules worked well. Short delivery time. Solar application for second-use batteries.
