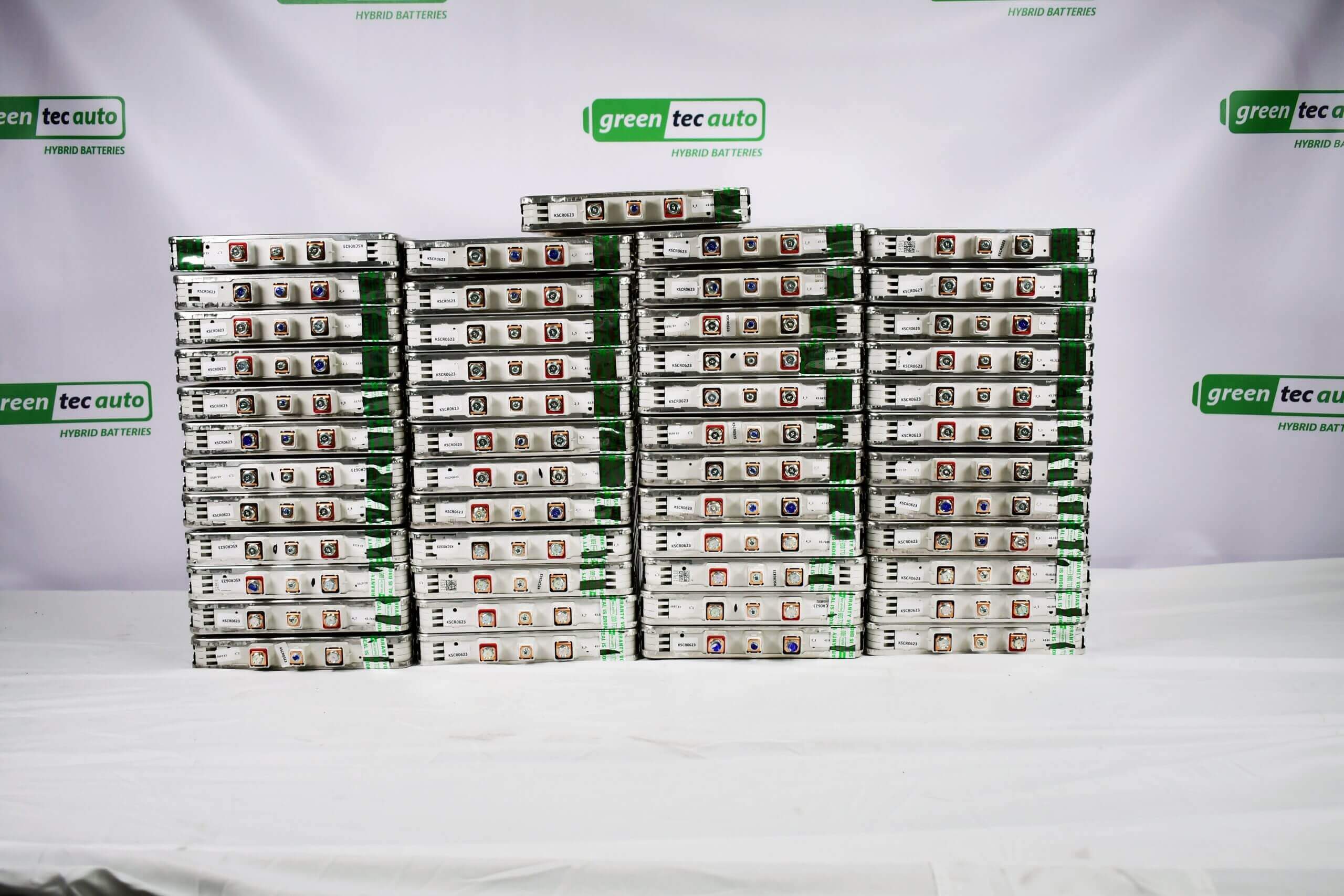

We will include one set of busbars for the lot of 49 and 70, and 3 sets of busbars for the lot of 210 for free!
Each module is tested for actual capacity.
The test discharges the module from 8.3V down to 5V at 20A.
The resulting capacity will be labeled on the module so you will know the exact capacity of every module you receive.
We sort our modules based on the tested capacity and ship groups within 1Ah of each other. In large orders we might have a larger range.
- shipped with terminal bolts.
- Gen 2 cells are interchangeable (+) (-)
Nothing broken or bent. May have scratches on the shielding.
***Disclaimer: These modules are intended for second life use, not to be used in the Nissan Leaf.***
SHIPPING: To local freight hub or commercial address with forklift or loading dock. Residential delivery possible for an extra charge, contact our office. Shipping will be either R and L or Fedex. Available in 48 continental US states. HI and AK please call for pricing.
LITHIUM BATTERY LiMn2O4/LiNiO2
Gen 2 Leaf Spec's
MODULE SPECIFICATIONS
Number of cells | 4 |
Construction | 2 in-series, 2 in parallel |
Length | 11.9291" (303 mm) |
Width | 8.7795" (223 mm) |
Height | 1.3779" (35 mm) |
Weight | 8.3775 lbs (3.8 kgs) |
Output terminal | M6 nut |
Voltage sensing terminal | M4 nut |
Module fixing hole diameter | 0.3582" (9.1 mm) |
CELL SPECIFICATIONS
Cell Type | Laminate type |
Cathode material | LiMn2O4 with LiNiO2 |
Anode material | Graphite |
Rated capacity (0.3C)/td> | 33.1 Ah |
Average voltage | 3.8V |
Length | 11.417" (290 mm) |
Width | 8.504" (216 mm) |
Thickness | 0.2795" (7.1mm) |
Weight | 1.7624 lbs (799 g) |
Connect Your Modules
Three copper busbar segments that allow you to wire a 10p14s battery bank using Nissan Leaf modules.
You might also need these:
Buying multiple modules and want to create a series? This product is often bought with our copper Nissan Leaf Bus bar kit. The kit contains three copper busbar segments that allow you to wire a 10p14s battery bank using Nissan Leaf modules.
