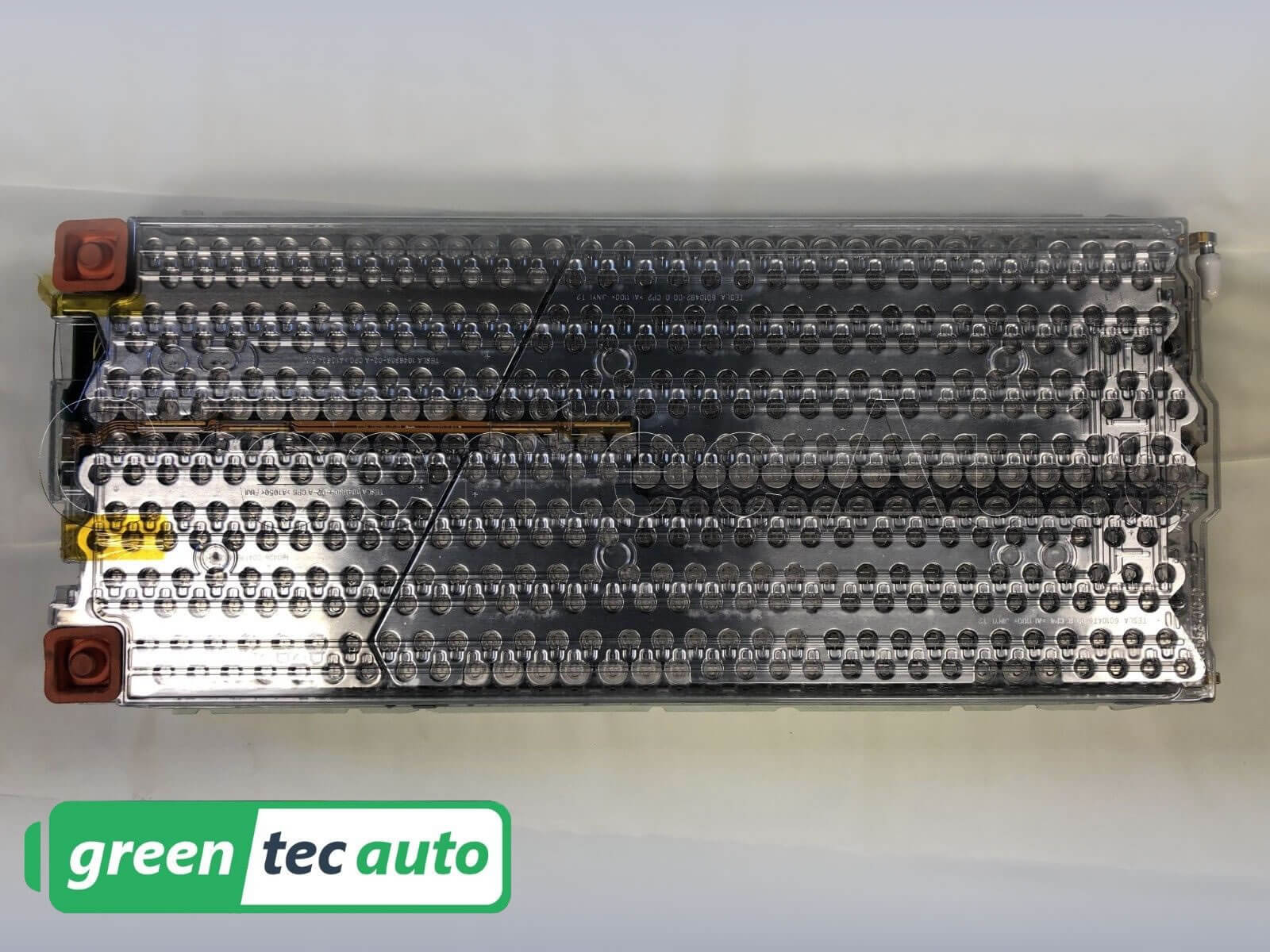

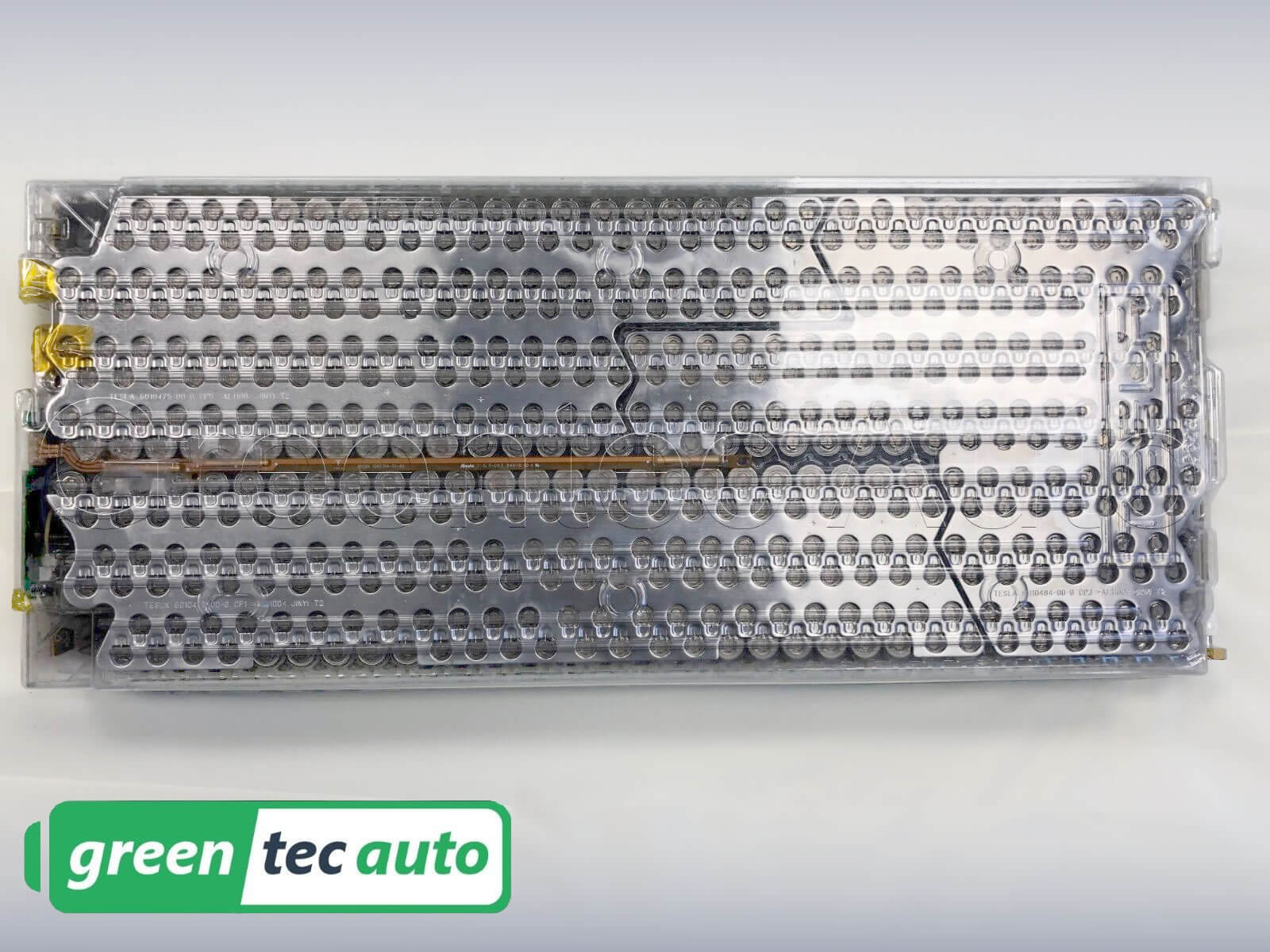

Tesla Model S NCA 24V 233Ah 5.3kWh Battery Module

(1 customer review)

$1,400.00

-

These modules were removed from a 2015 Tesla Model S with a battery rated at 85kWh battery. Vehicle had 25,000 miles.

The cells are configured 6s74p.

Repurposed EV Battery Use: Whether you want to do off grid solar, Golf cart conversions, EV build, electric conversion car, ATV, Motorcycle, Bicycle, RV solar, and anything else that needs a battery these Tesla Model S Battery packs will put out a lot of power and long cycle life. Tired of Lead Acid and AGM battery not performing? These repurposed EV battery Lithium Ion battery packs with 5.3kWh of power will put them to shame.

In stock

Unlimited Mileage Warranty: 3 Months

MODULE VOLTAGE RANGE
18.6V soc 0%
23.1V soc 70%
24.9V soc 100%

CELL VOLTAGE RANGE
3.1V soc 0%
3.85V soc 70%
4.15V soc 100%

CELL SPECIFICATIONS

Capacity ~233Ah, ~5.3kWh
Battery Chemistry: Nickel-Cobalt Aluminum.

Dimensions:
Length 27”/685mm
Total width with mounting fins 11 13/16”/300mm
Width without mounting fins 11”/280mm
Height 3”/75mm
Mounting fin at 2”/50mm
Terminals apart 9”/230mm
Tubing 5/16” 8mm
Weight: 56.5lbs / 25.6kg

1 review for Tesla Model S NCA 24V 233Ah 5.3kWh Battery Module

  1. Brooke B

    I am ecstatic. Tesla batteries I received are like brand new. I don’t even think they’ve ever been used they look that new. Very happy customer.
