CATL 66V 141Ah 9.3kWh NMC High Power!

Original price was: $800.00.Current price is: $650.00.

-

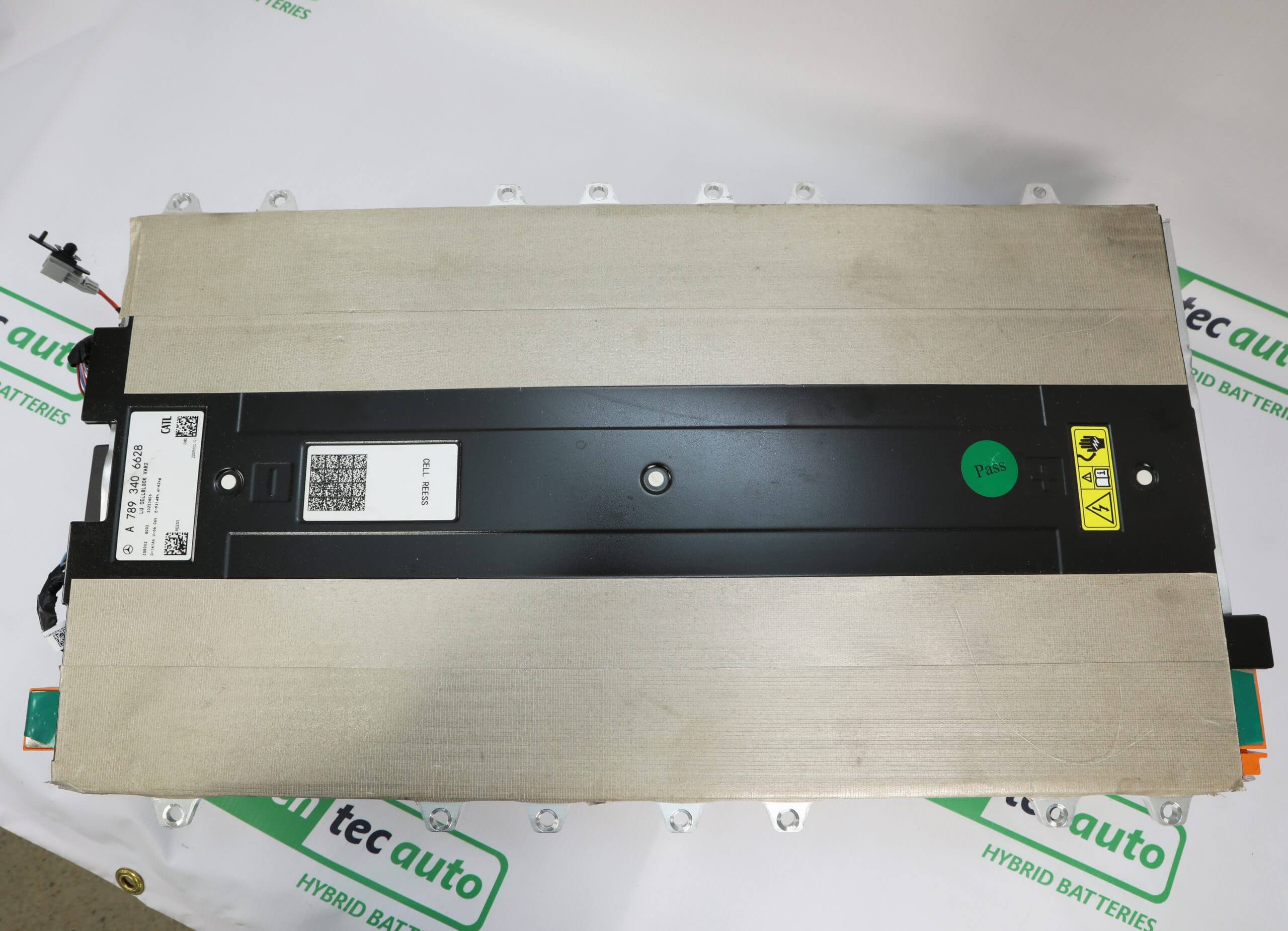

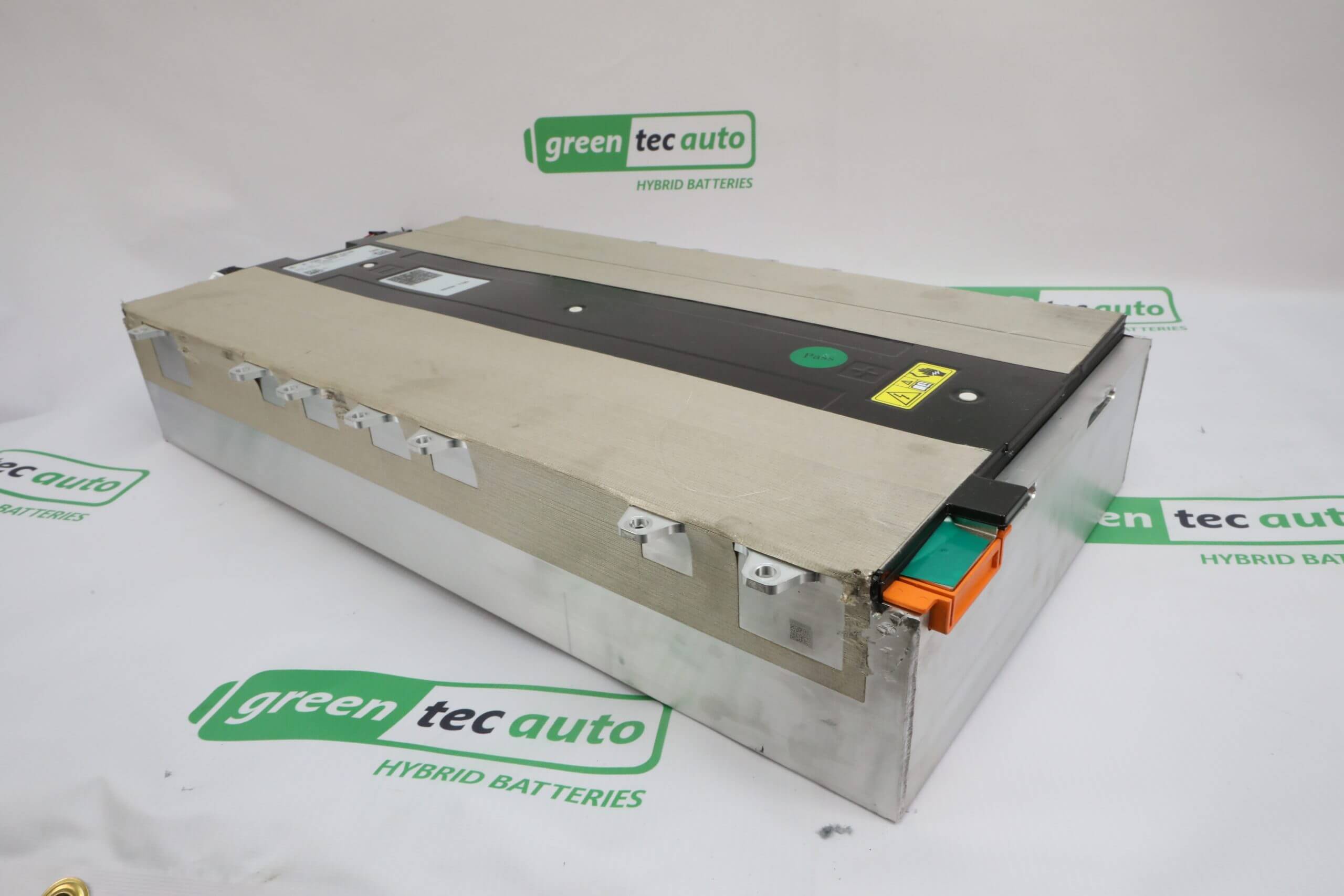

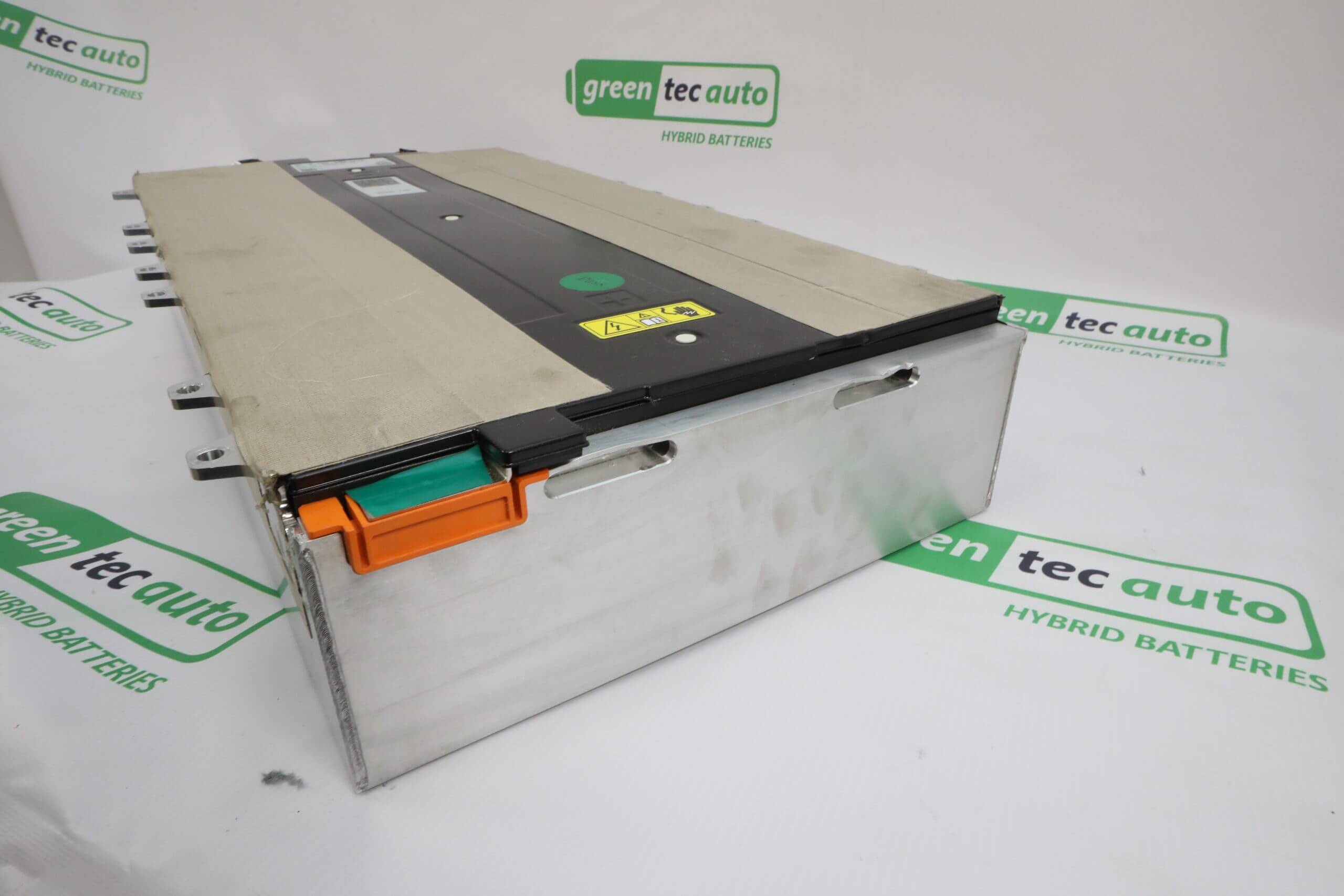

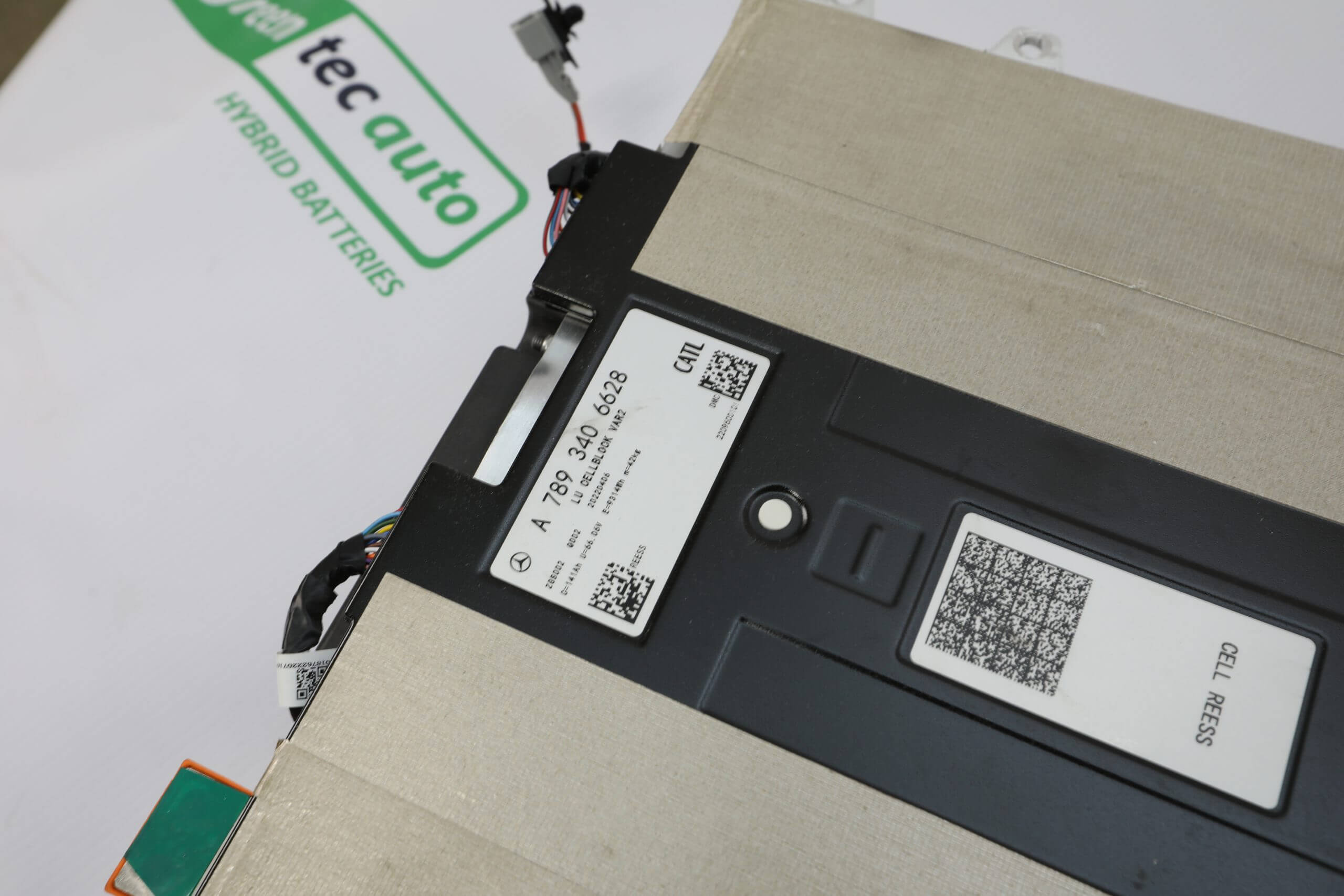

This battery module was removed from the Mercedes EQS. Its higher cell count, capacity, and high discharge makes it an ideal solution for EV conversions from golf carts to race cars!

Price per kWh: $86/kWh $70/kWh!

Years: 2023

Shipping: Freight $350

Warranty: 6 Months, Extendable

More Info:

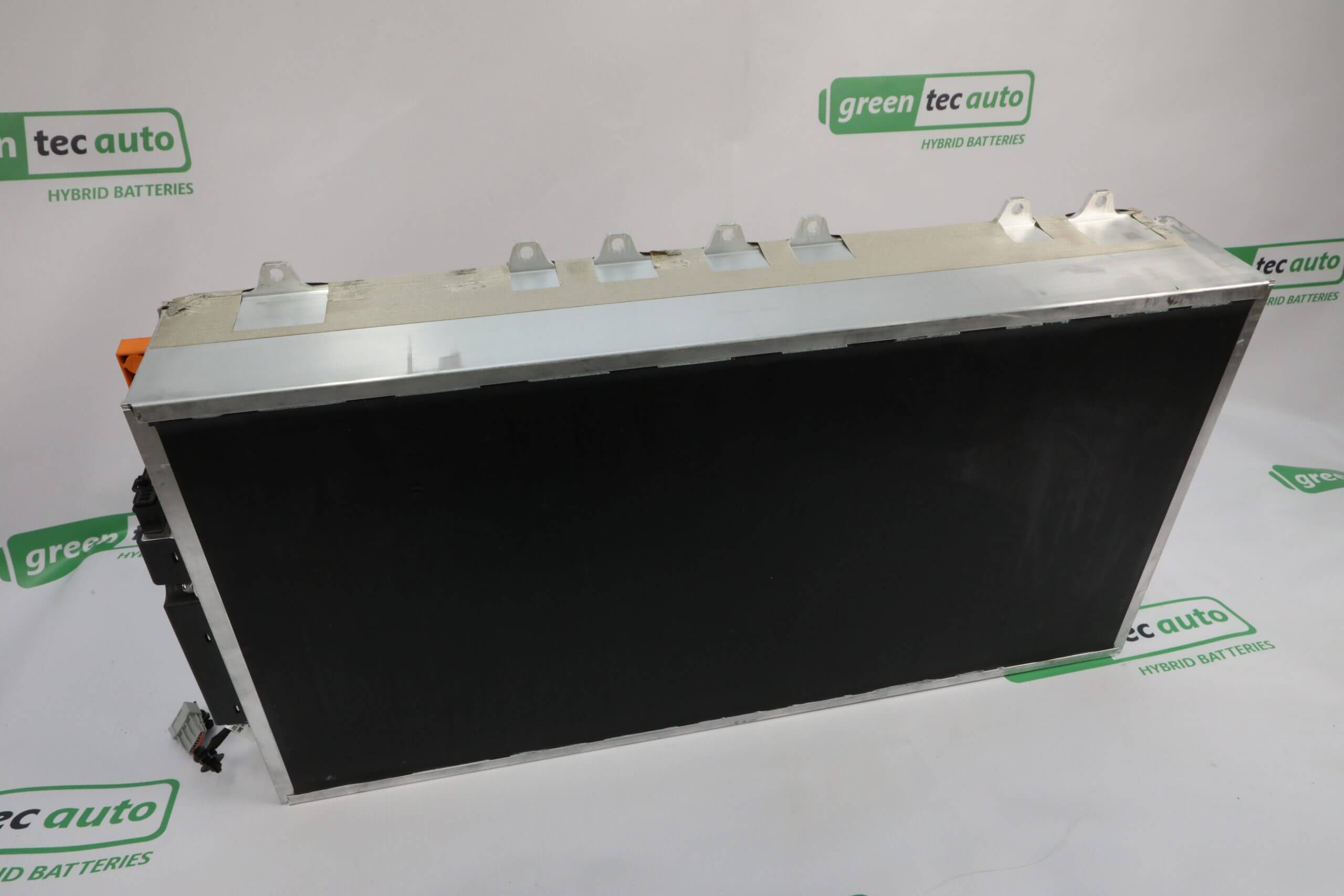

Module cooling was integrated into the battery case. The cells have thermal transfer padding residual on the bottom of the module.

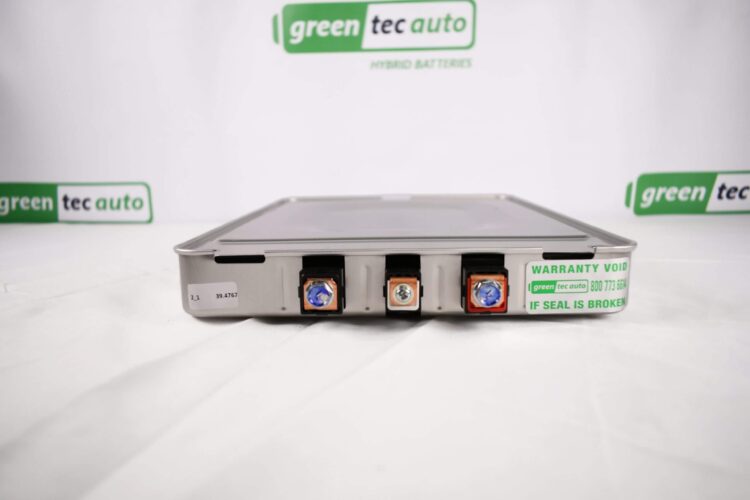

There are 12 modules in one battery pack, looks like there are two types of modules, one having mirrored polarity of the other. Similar to the Leaf G1.

These batteries are very sleek and well built. Very solid construction and easy to assemble into larger voltage packs. These would be perfect for EV conversions.

Here is a youtube video of the assembly of the pack.

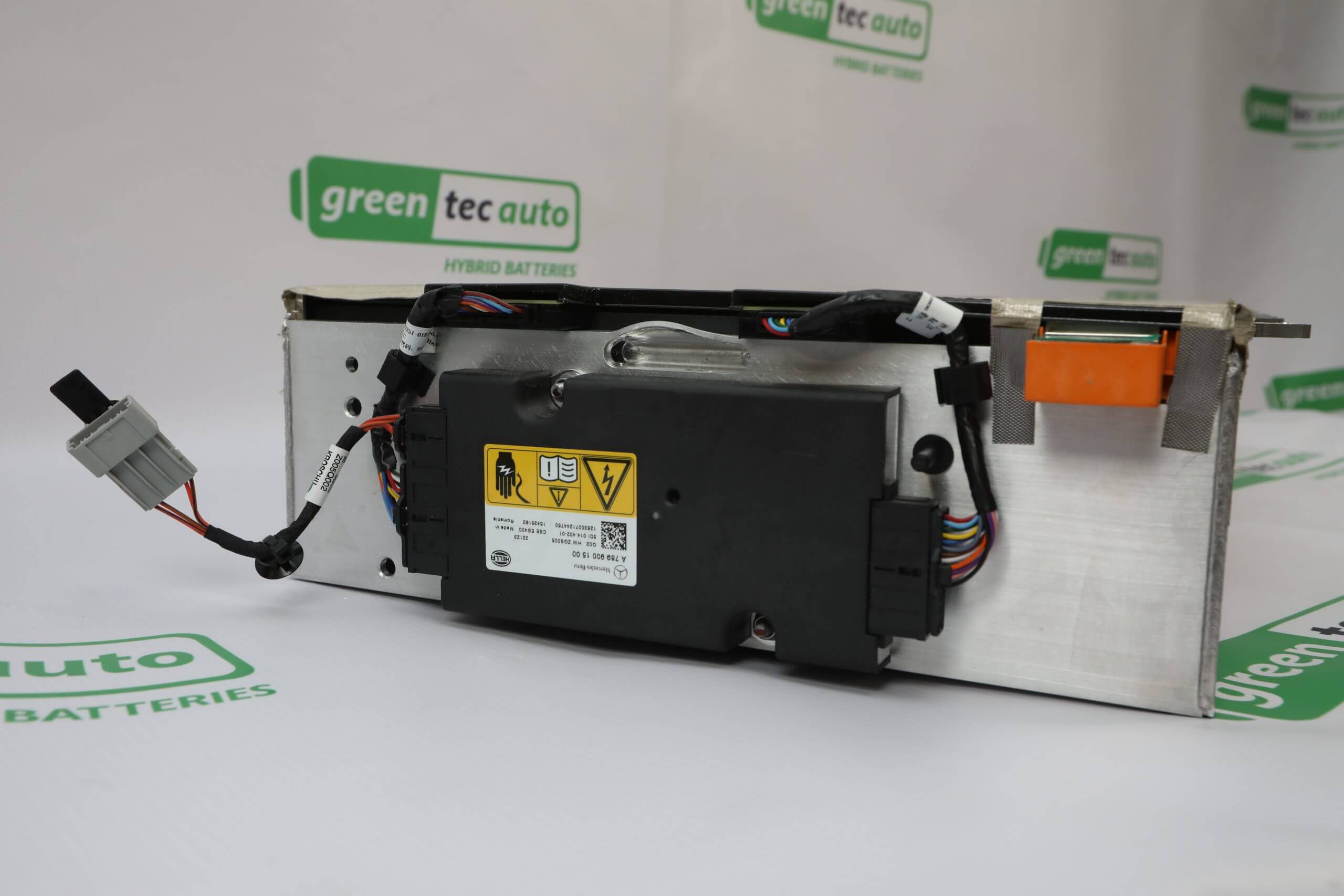

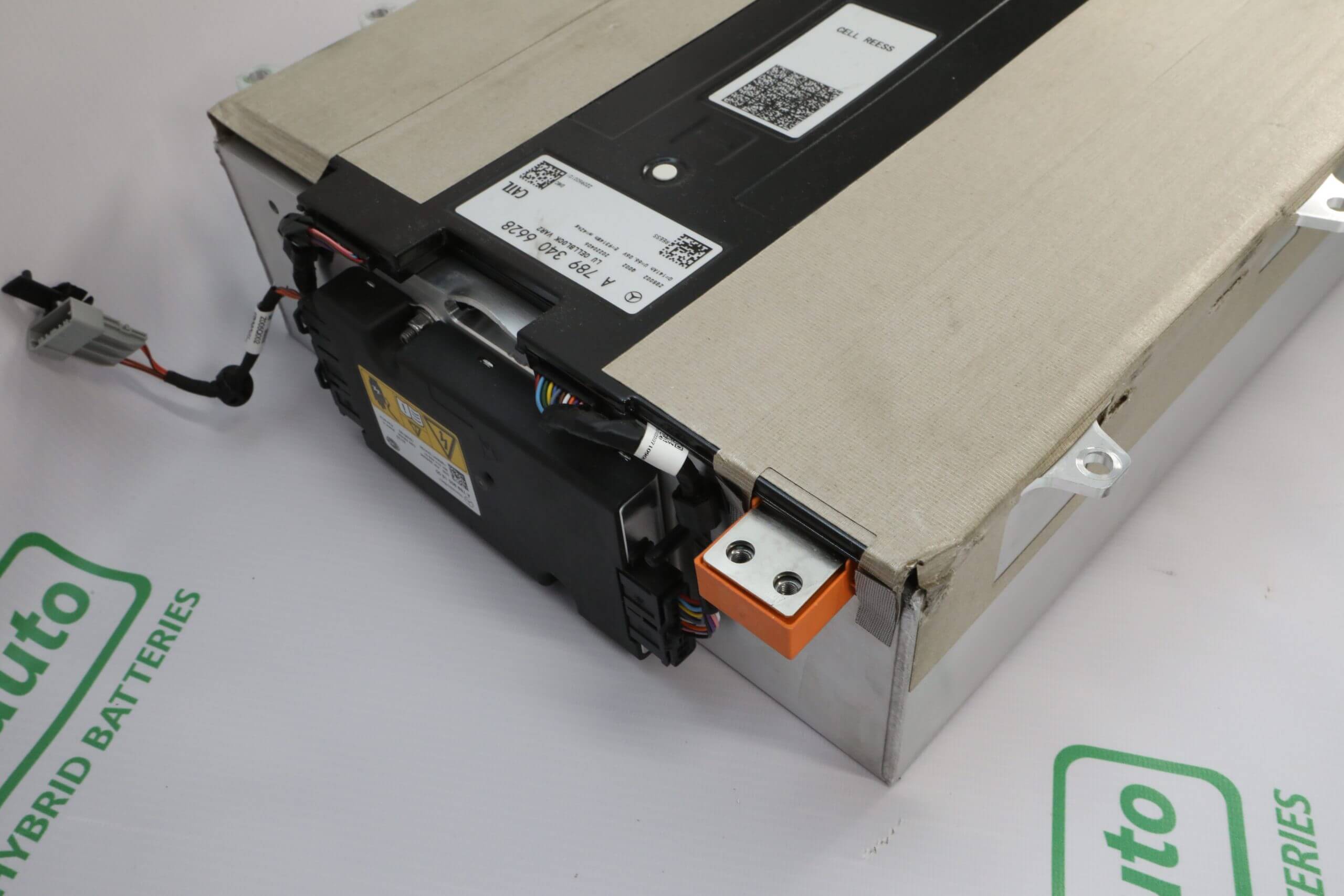

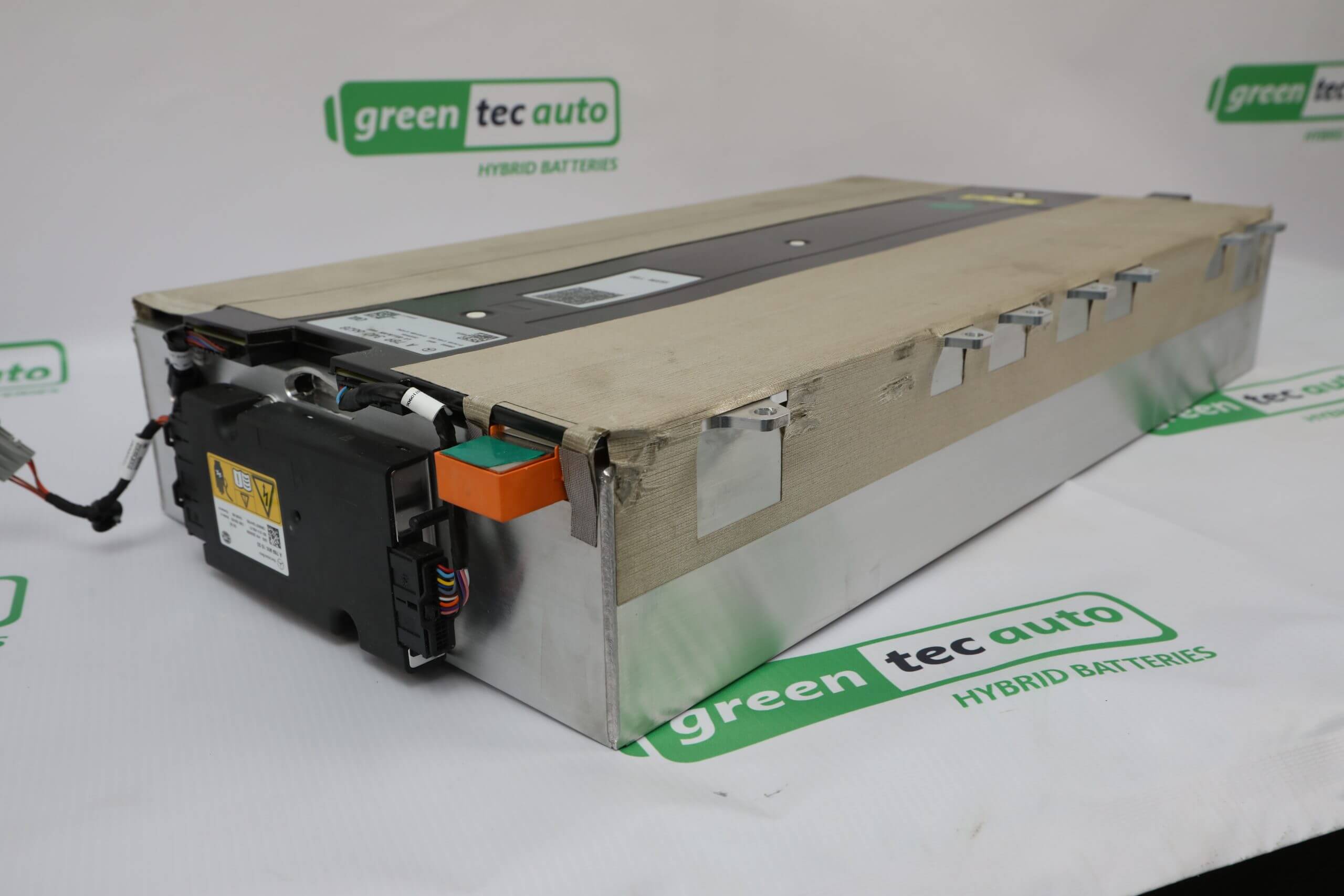

Not every module will have the attached BMS.

If buying multiple modules, here are the voltage ranges of up to 5 modules in series.

Max Nominal Minimum
1 Module 75.6 66.06 54
2 Modules 151.2 132.12 108
3 Modules 226.8 198.18 162
4 Modules 302.40 264.24 216
5 Modules 378.00 330.3 270

Shipping will need to be freight due to the pack size. We can ship this pack to one of our locations for no more than $250, or ship to a commercial address or freight hub near you for $350. Residential freight delivery is possible for an additional charge, contact us for a quote.

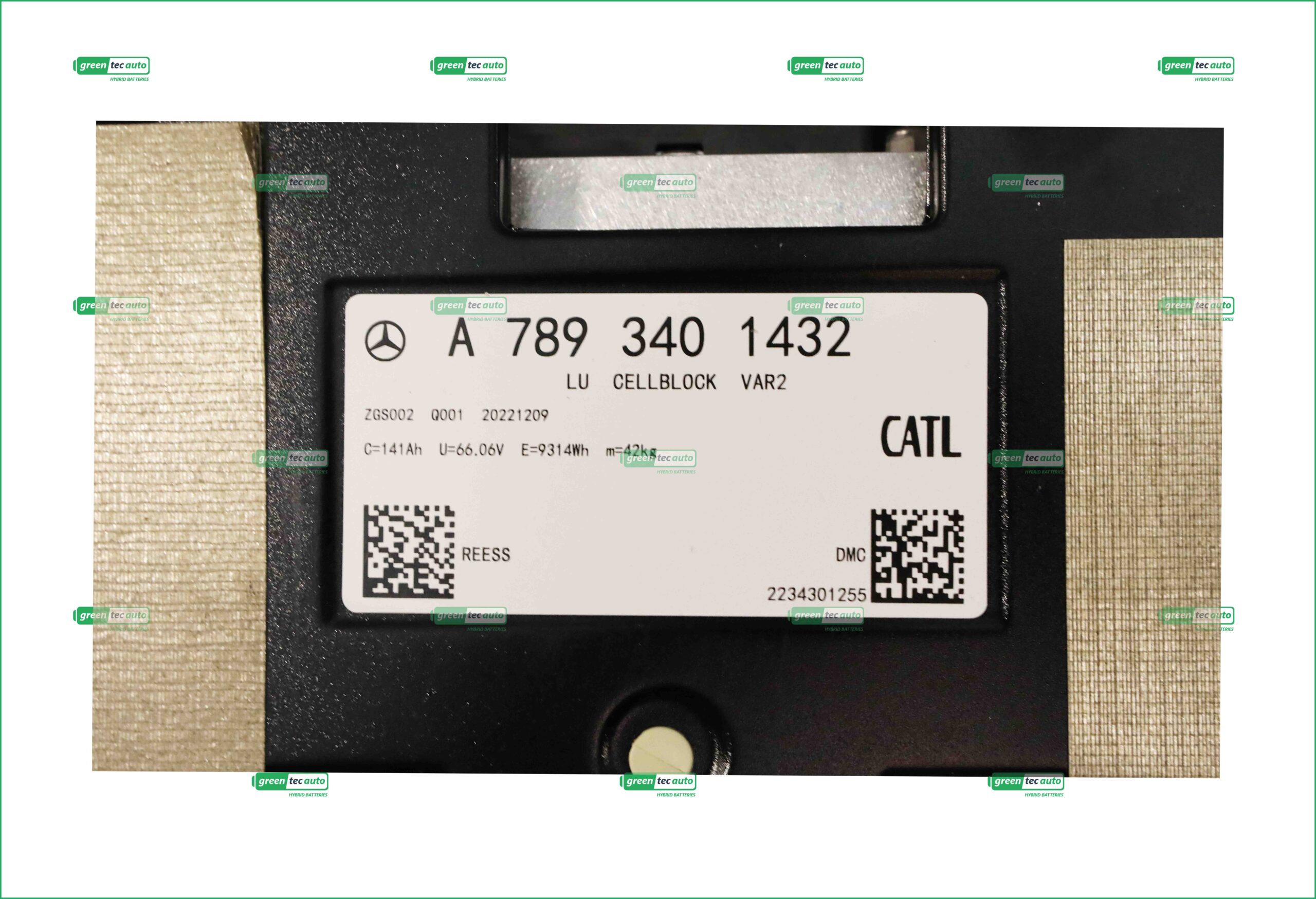

Cell info                                                                        Module Info

Nominal Capacity: 141 Ah                                                        Configuration: 18S1P

Max Voltage: 4.2V                                                                      Max Voltage: 75.6V

Nominal Voltage: 3.67V                                                            Nominal Voltage: 66.06V

Minimum Voltage: 3V                                                               Minimum Voltage: 54V

Module Size

Length: 25 1/4 inches

Width: 12 1/4 inches

Width with mounting ears: 13 3/4 inches

Height: 4 1/4 inches

Weight: 93 lb

Additional information
Weight 93 lbs
Dimensions 26 × 13 × 5 in
