Lot of 14 New A123 Pouch Cells AHP37EU1 3.2V 20Ah LiFePO4

$180.00

-

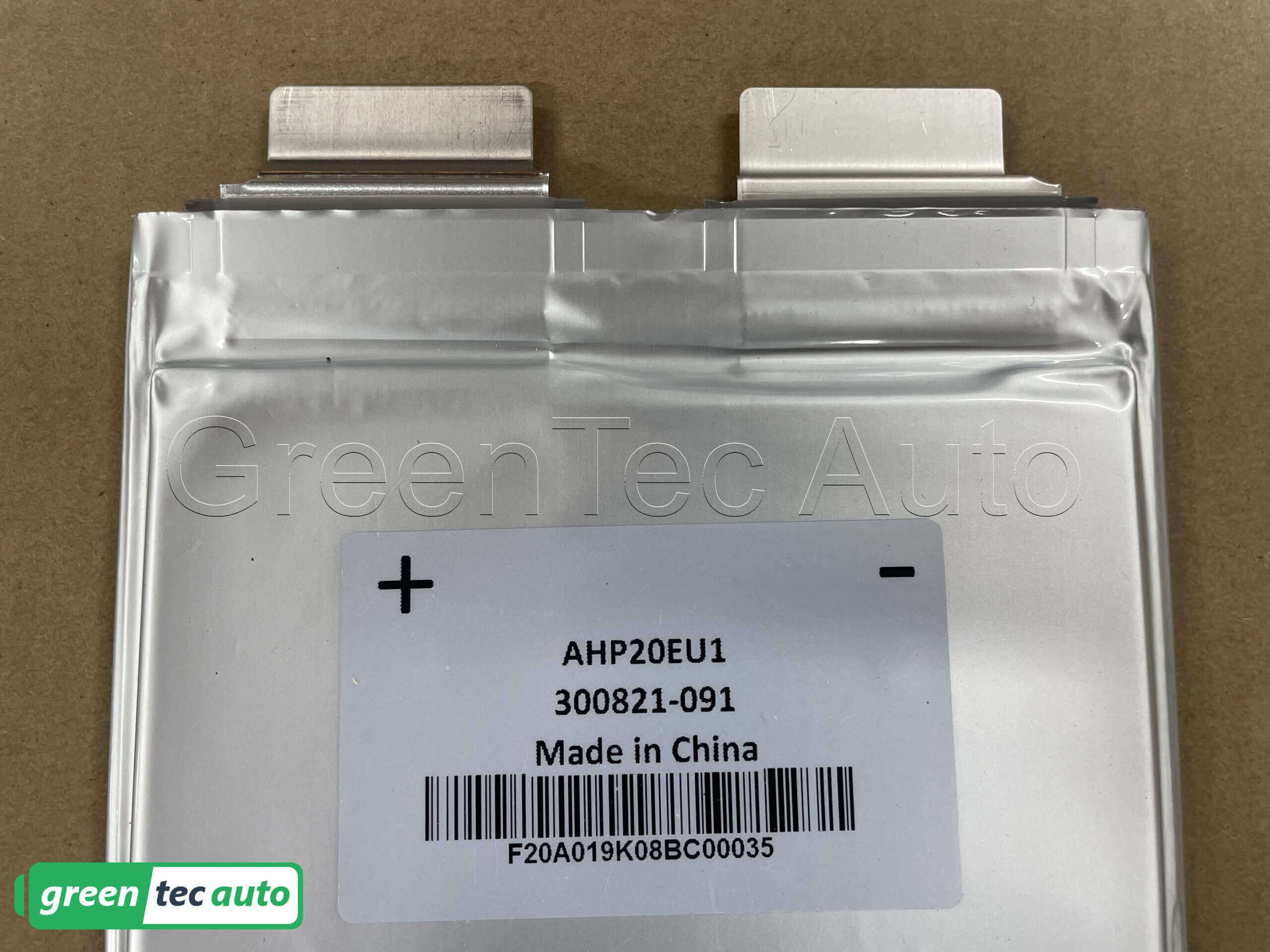

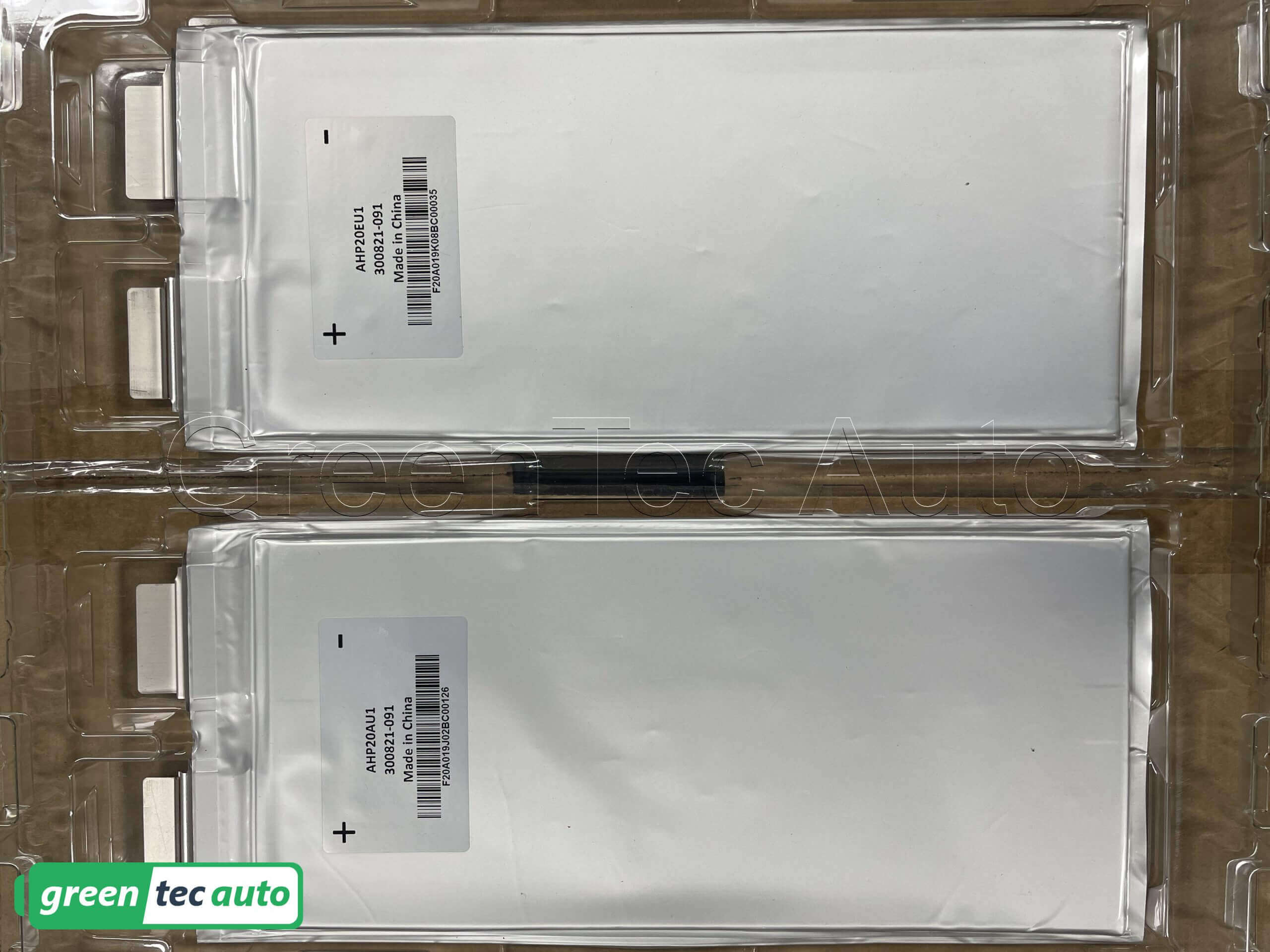

A123 20Ah LiFePO4 battery cells that are New, never been used.

Price per cell: $12.85/cell

Price per kWh: $200/kWh!!

Cell manufacturing years: 2019

Shipping: Free Ground

Warranty: 6 months, Extendable

Unlimited Mileage Warranty: 6 Months

Category: Tags: ,

Cells are New, never been used.

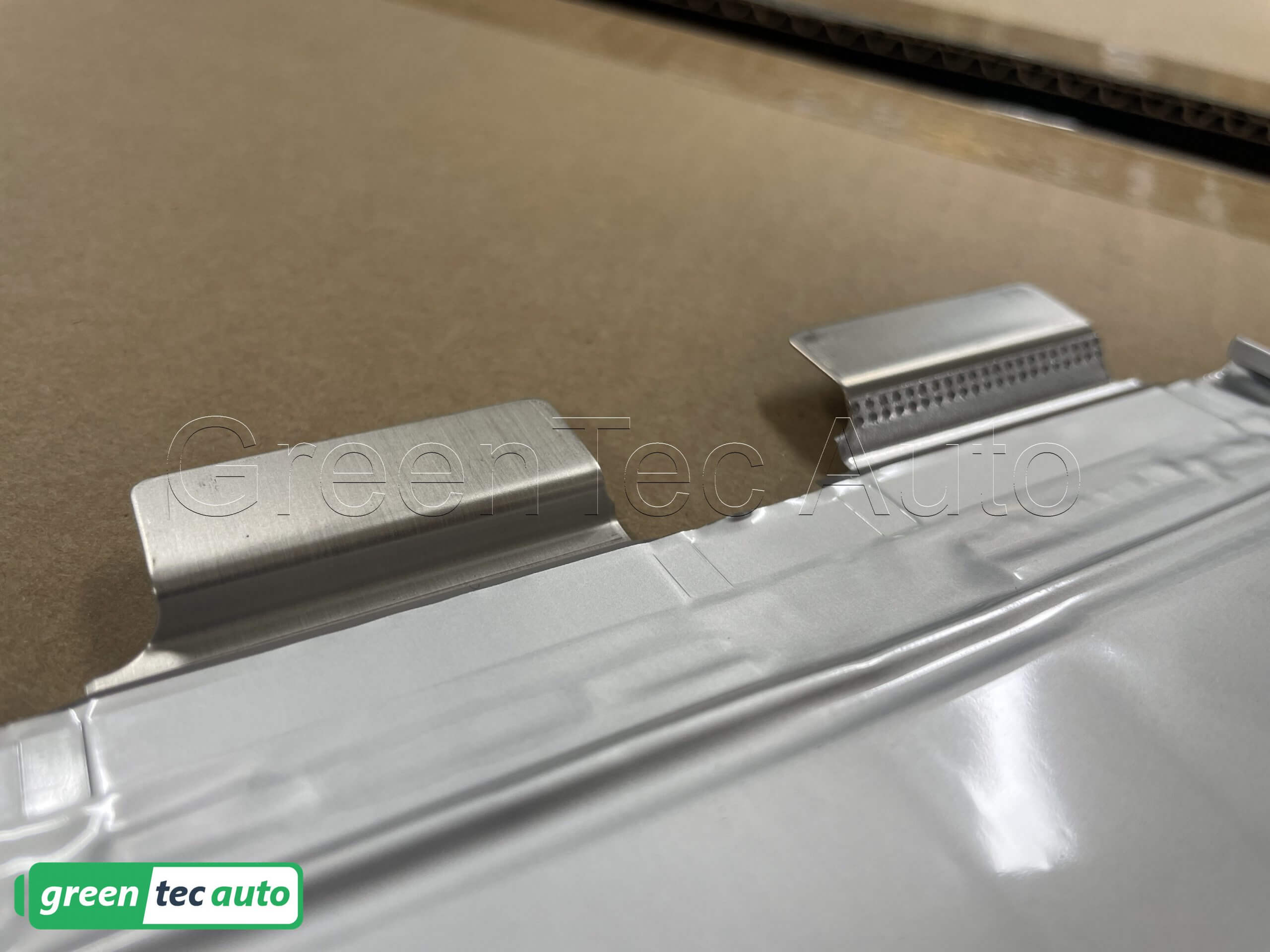

Aluminum tab has been cut and a Nickel coated copper tab is welded to it. Should make soldering cells together easy if that was your method of connecting them.

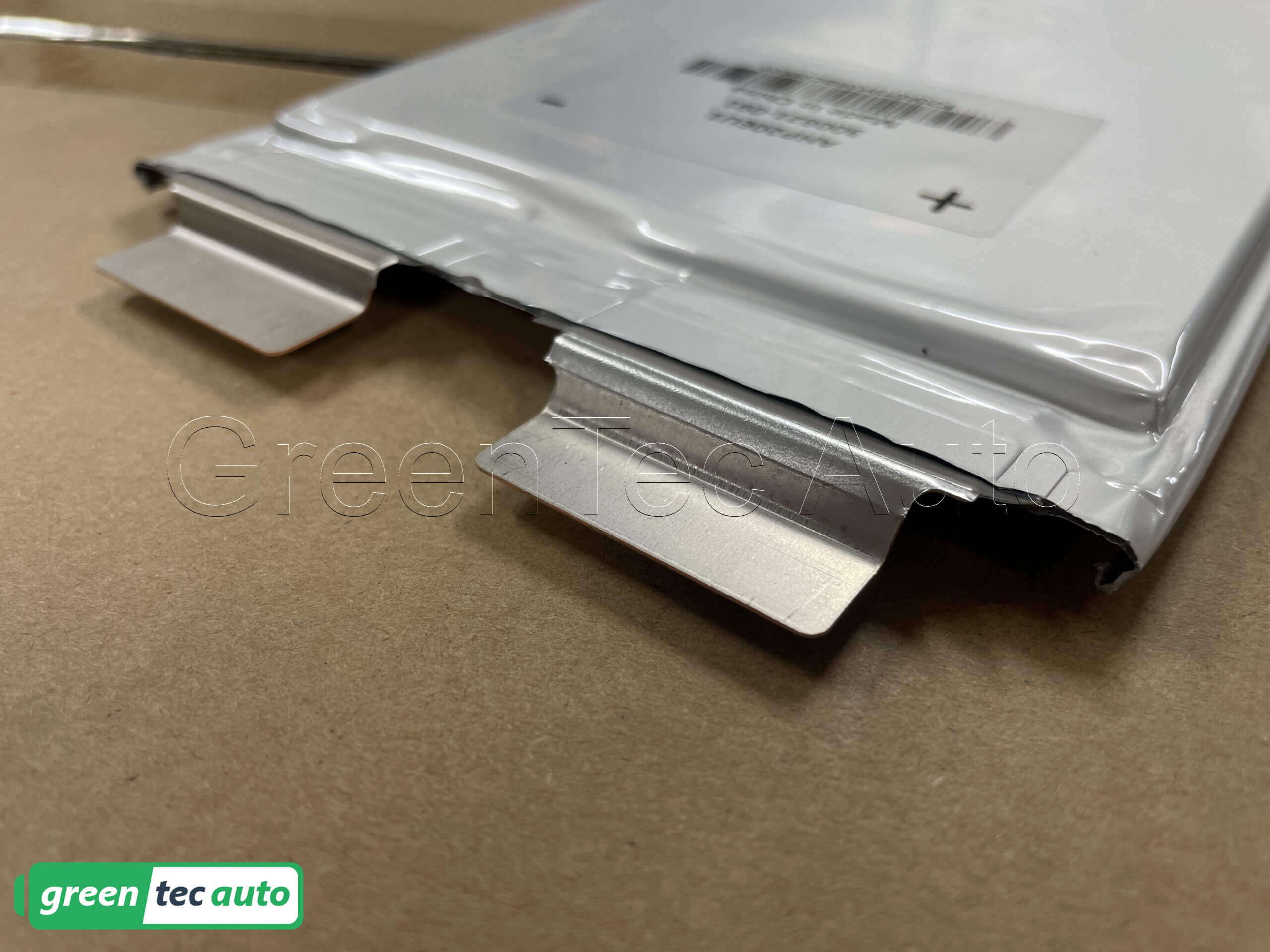

Both tabs are bent for their original application, not on accident.

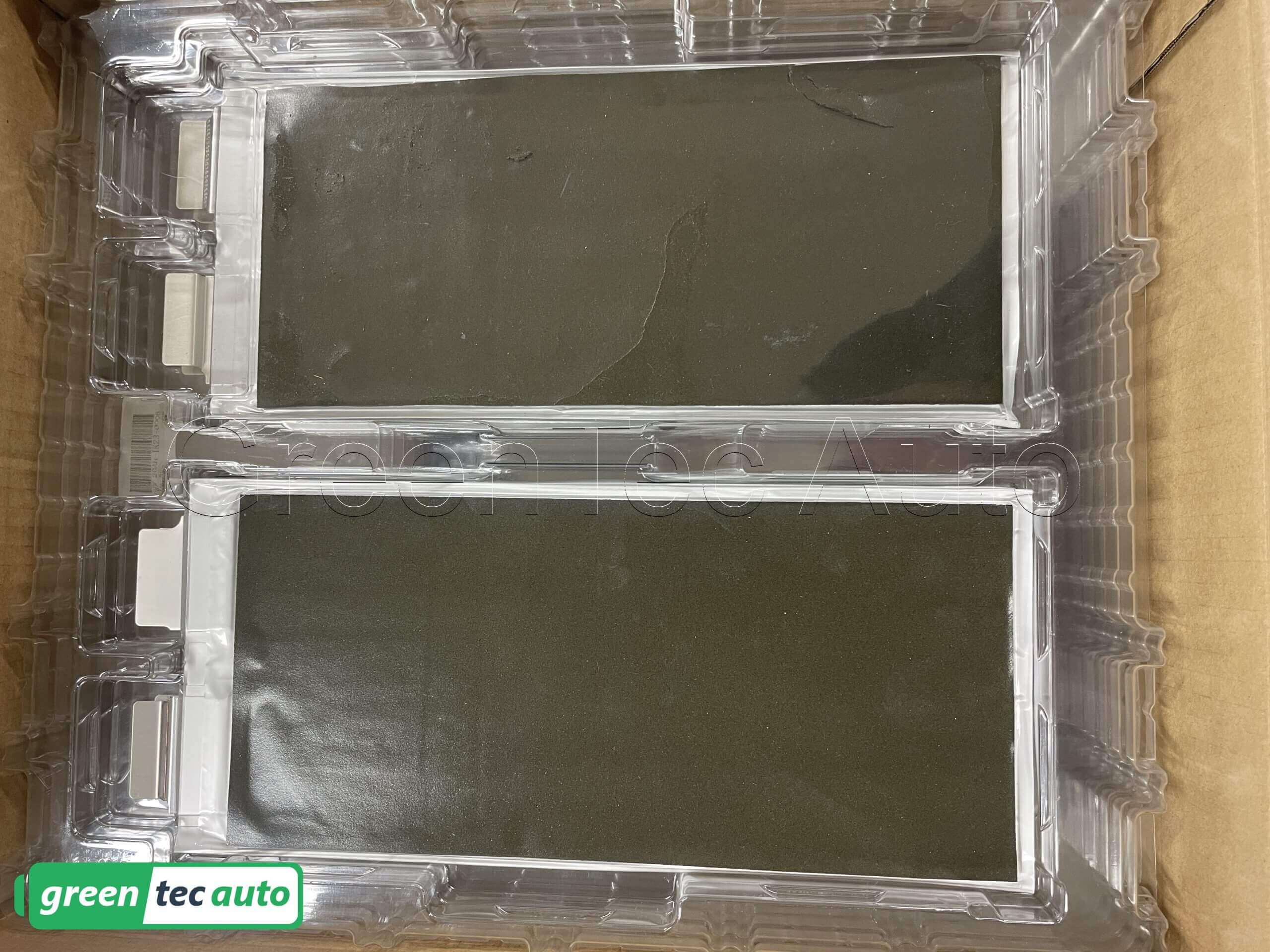

Some cells will have foam glued to them 1mm thick.
Foam could cause the cell to stick to the tray above them, be careful removing the trays.
Multiple lots available.
Search for AHP37EU1 for more information.
Tested a sample cell and go 20.8Ah
About 1200 cells available.
Search for AHP37EU1 for detailed info.

Cell size:
Total Length: 13 7/8 inch
Pouch Length: 12 3/4 inch
Width: 5 11/16 inch
Thickness: 1/2 inch
Tab length unmodified: 1 inch
Tab width unmodified: 1 3/4 inch

Weight: 1.85lb

Cell Voltages
Max: 3.6V
Nominal: 3.3V
Min: 2.0V

Additional information
Weight 34 lbs
Dimensions 18 × 15 × 6 in
