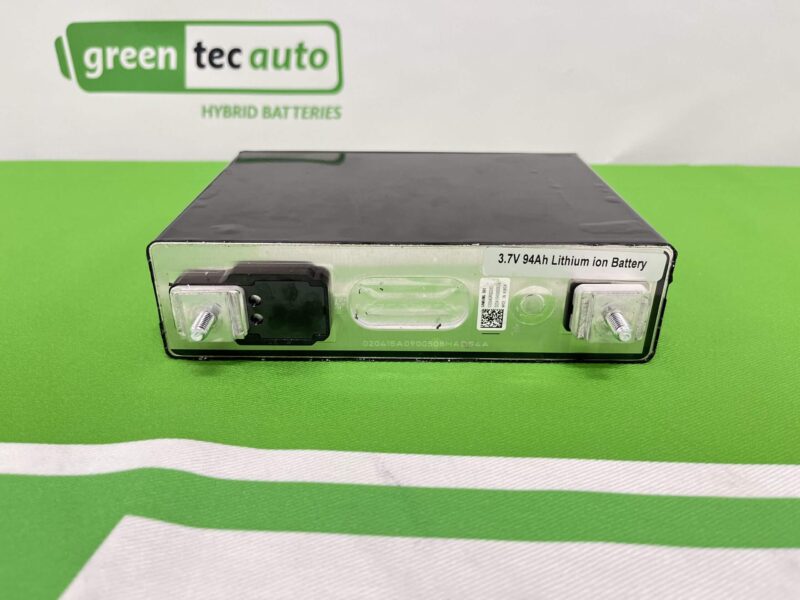

Samsung SDI NMC 3.7V 94Ah 350Wh Brand New Battery Cells

$55.00

-

Samsung Li-ion cell for EV and energy storages applications with long cycle life >3200 cycles and high energy density by Nickel-cobalt-manganese (NCM) technology.

These cells were purchased brand new for use in EV conversions and the project fell through. They have never been used and test at roughly 96Ah on the first cycle.

Price per kWh: $157/kWh

Years: 2021

Shipping: Free Ground

Warranty: 6 Months, Extendable

These cells are great for just about any project! If you have limited space and need to fit cells where there is room, nothing beats having loose cells that you can arrange into whatever configuration you need. They have a high current discharge rate that makes them usable in many applications, from golf carts to electric car conversions!

Item Parameter Specification
Battery Lithium ion NCM Battery
Nominal Capacity 94Ah
Nominal Voltage 3.68 V
Internal Resistance ≤0.75mΩ
Energy 345wh
Charging(CC-CV)
Recommend Constant Current 72A
Charging Upper Limit Voltage 4.15V
Discharging
Max Continuous Discharge Current 150A
Discharging Cut-off Voltage 2.7v
Recommended SOC Usage Window SOC: 10%~90%
Operation Thermal Ambient
Charging 0°C ~65°
Discharging -20°C ~ 55°C
Storage Thermal Ambient
Short-term (within 1 month) -20°C ~ 65°C
Long term (within 1 year) -20°C ~55°C
Storage Humidity <70%
Battery Weight 7.4 Ounce
Battery Dimension 173*125*45mm
Additional information
Weight 34 lbs
Dimensions 18 × 15 × 6 in
