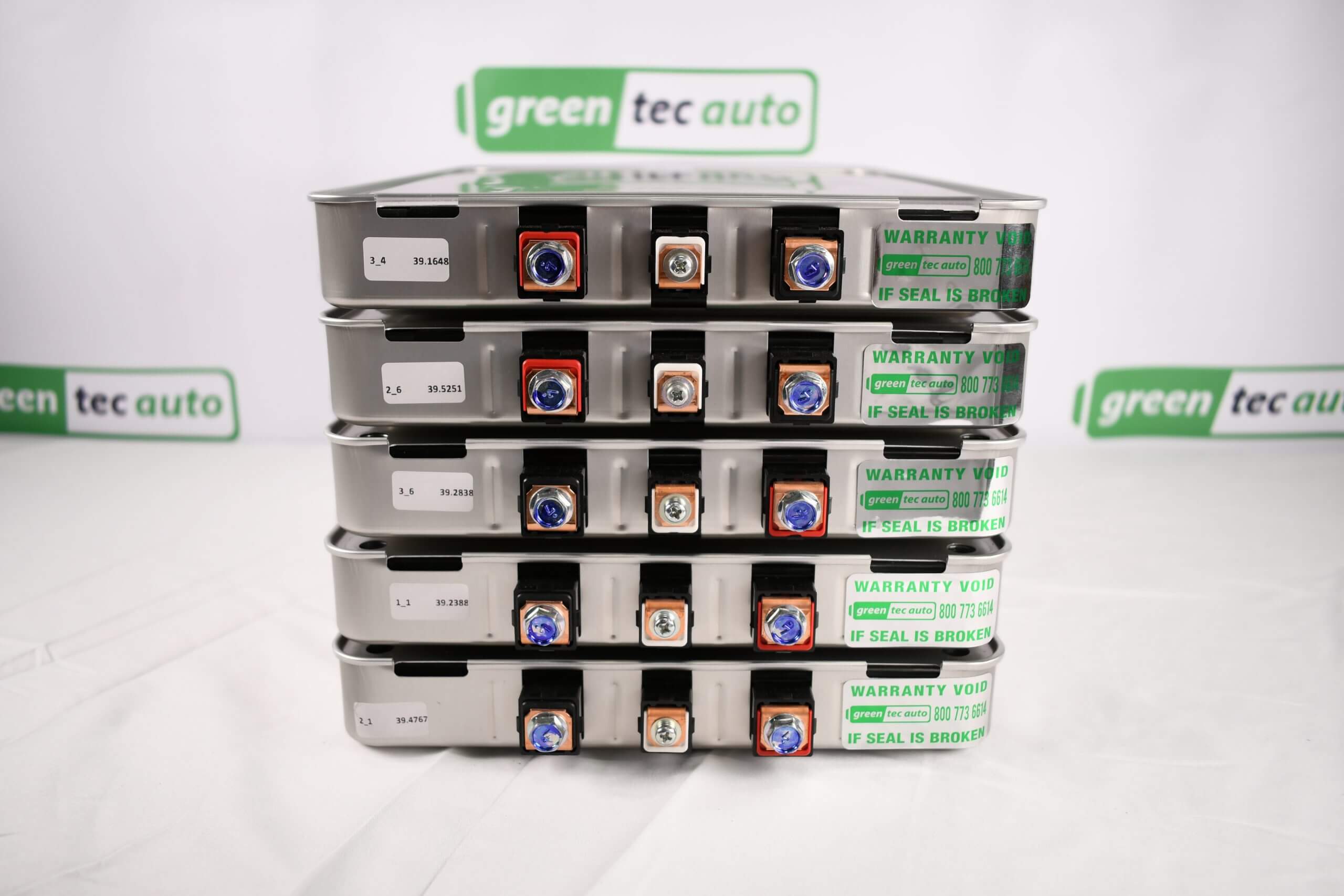

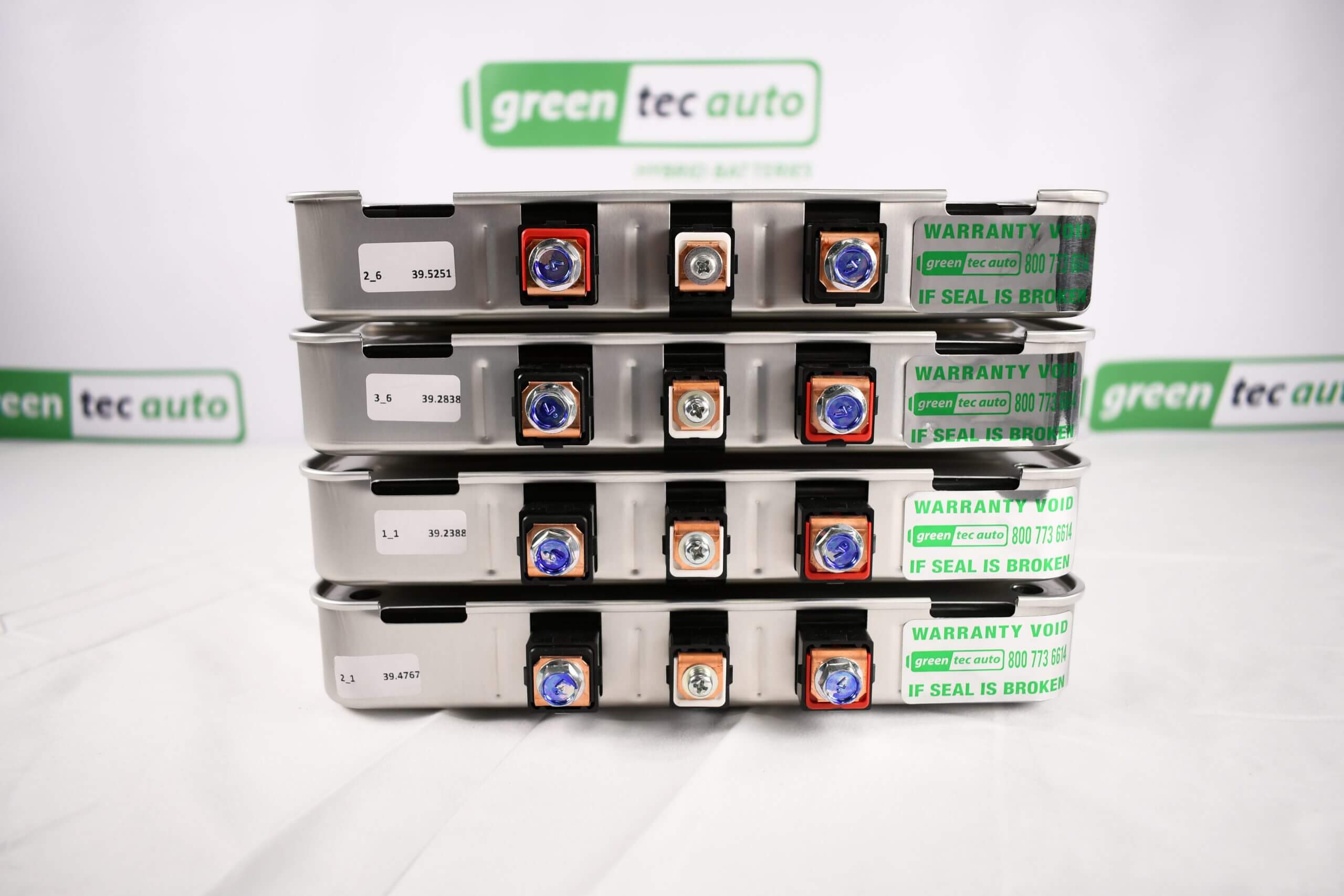

Each module is tested for actual capacity.
The test discharges the module from 8.3V down to 5V at 20A.
The resulting capacity will be labeled on the module so you will know the exact capacity of every module you receive.
We sort our modules based on the tested capacity and ship groups within 1Ah of each other, usually less. In large orders we might have a larger range.
- shipped with terminal bolts.
- There are 2 types of Gen 1 cells. Ones with positive on the left and ones with positive on the right. Unless specified, we will send roughly 50/50 plus one.
G1 Nissan Leaf NMO 7.6V 500Wh Battery
MODULE SPECIFICATIONS
| Number of cells | 4 |
| Construction | 2 in-series, 2 in parallel |
| Length | 11.9291" (303 mm) |
| Width | 8.7795" (223 mm) |
| Height | 1.3779" (35 mm) |
| Weight | 8.3775 lbs (3.8 kgs) |
| Output terminal | M6 nut |
| Voltage sensing terminal | M4 nut |
| Module fixing hole diameter | 0.3582" (9.1 mm) |
CELL SPECIFICATIONS
| Cell Type | Laminate type |
| Cathode material | LiMn2O4 with LiNiO2 |
| Anode material | Graphite |
| Rated capacity (0.3C)/td> | 33.1 Ah |
| Average voltage | 3.8V |
| Length | 11.417" (290 mm) |
| Width | 8.504" (216 mm) |
| Thickness | 0.2795" (7.1mm) |
| Weight | 1.7624 lbs (799 g) |
48 and Below Ship Ground G1 Modules | ||
| Ah | kWh | Price/Module |
| 30 | 0.222 | $29.97 |
| 31 | 0.229 | $30.97 |
| 32 | 0.237 | $31.97 |
| 33 | 0.244 | $32.97 |
| 34 | 0.252 | $33.97 |
| 35 | 0.259 | $34.97 |
| 36 | 0.266 | $35.96 |
| 37 | 0.274 | $36.96 |
| 38 | 0.281 | $37.96 |
| 39 | 0.289 | $38.96 |
| 40 | 0.296 | $39.96 |
| 41 | 0.303 | $40.96 |
| 42 | 0.311 | $41.96 |
| 43 | 0.318 | $42.96 |
| 44 | 0.326 | $43.96 |
| 45 | 0.333 | $44.96 |
Connect Your Modules
Copper busbars that allow you to wire a 10p14s battery bank using Nissan Leaf modules.
You might also need these:
Buying multiple modules and want to create a battery bank? This product is often bought with our Nissan Leaf batteries. The kit contains three types of copper busbar segments that allow you to wire a 10p14s battery bank using Nissan Leaf modules.
