More Info:

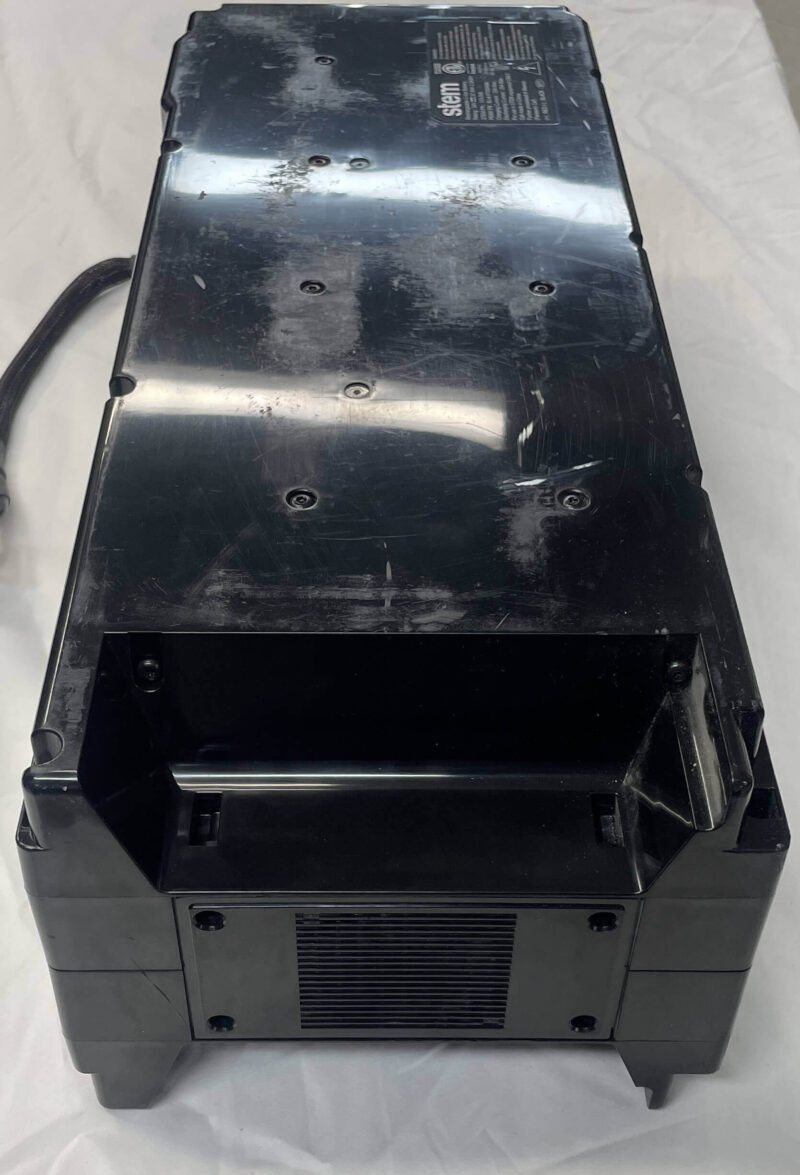

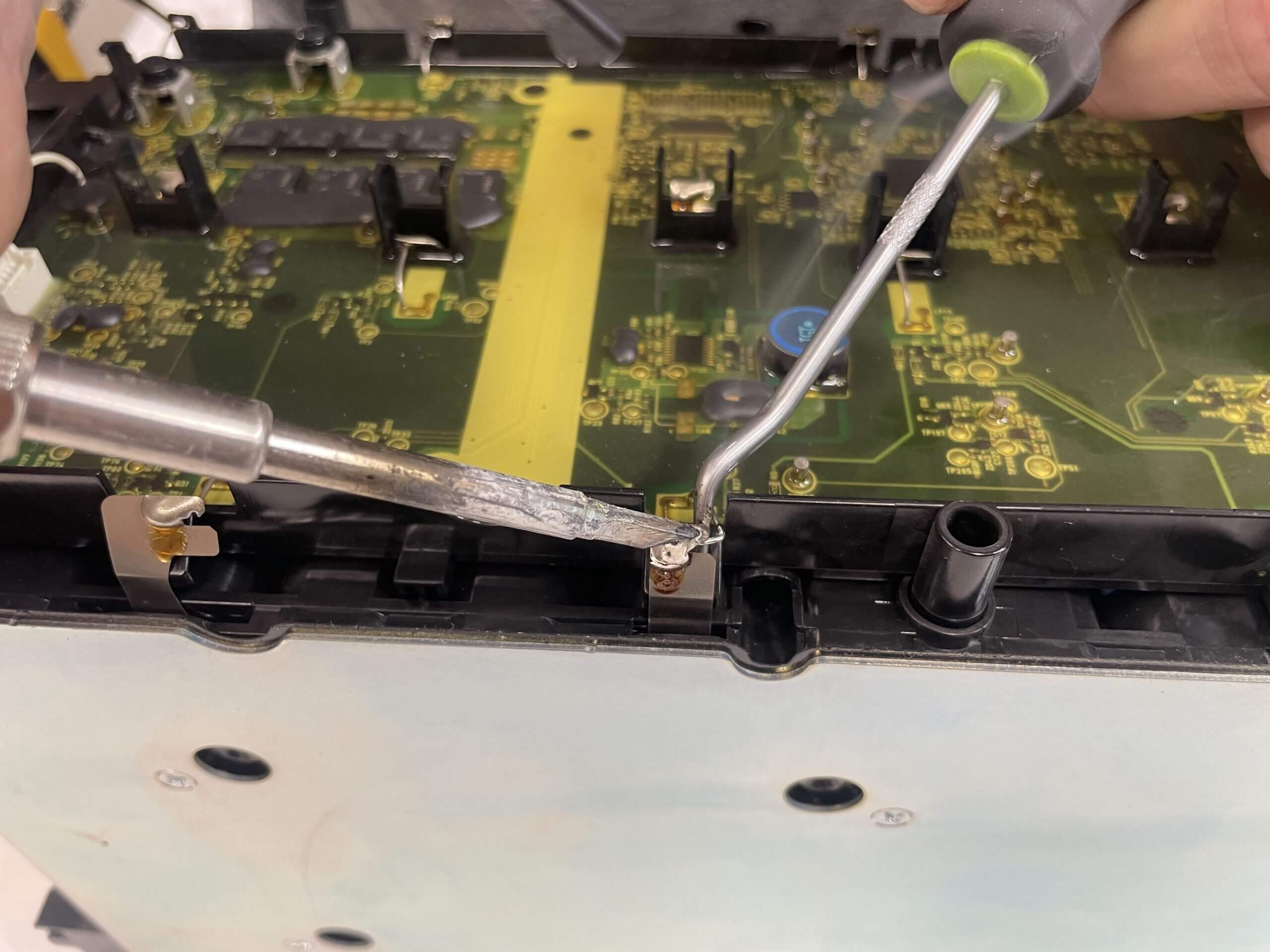

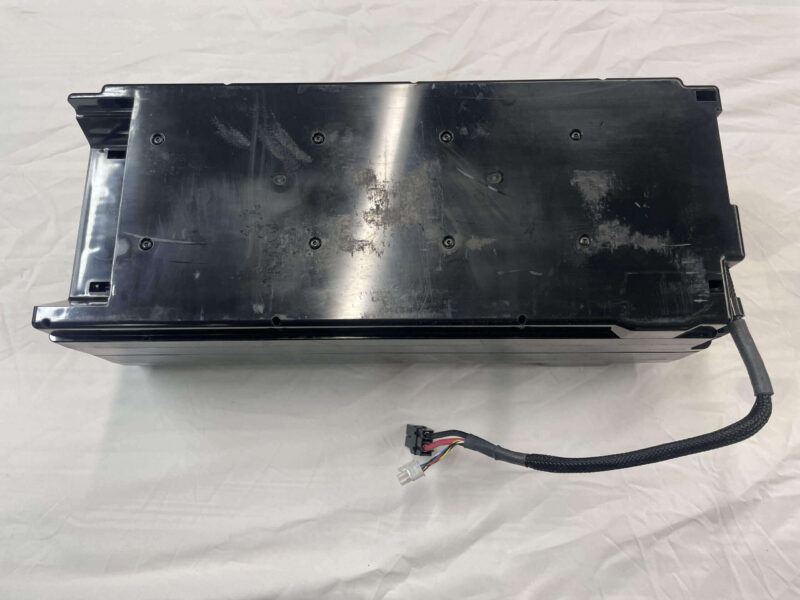

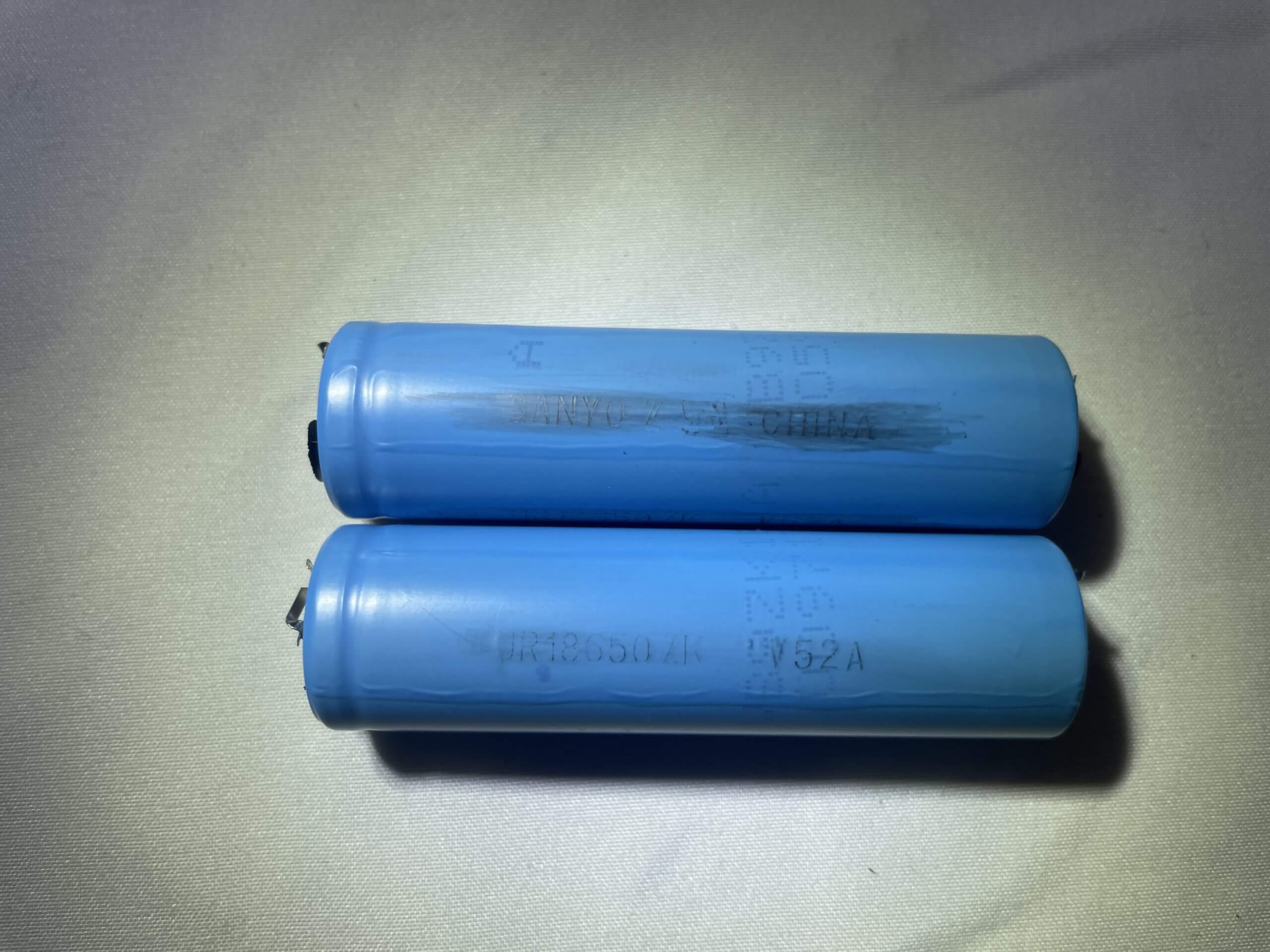

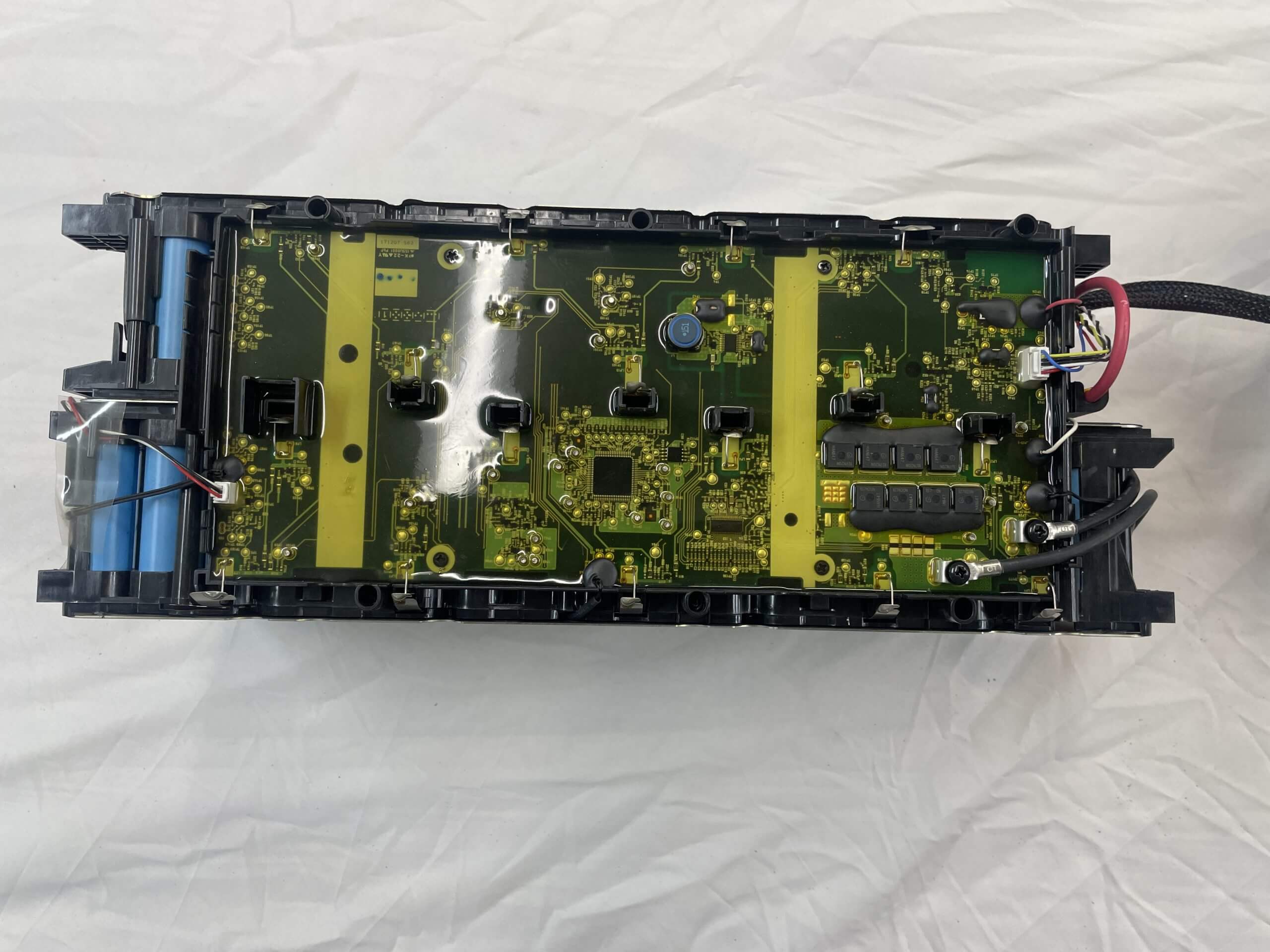

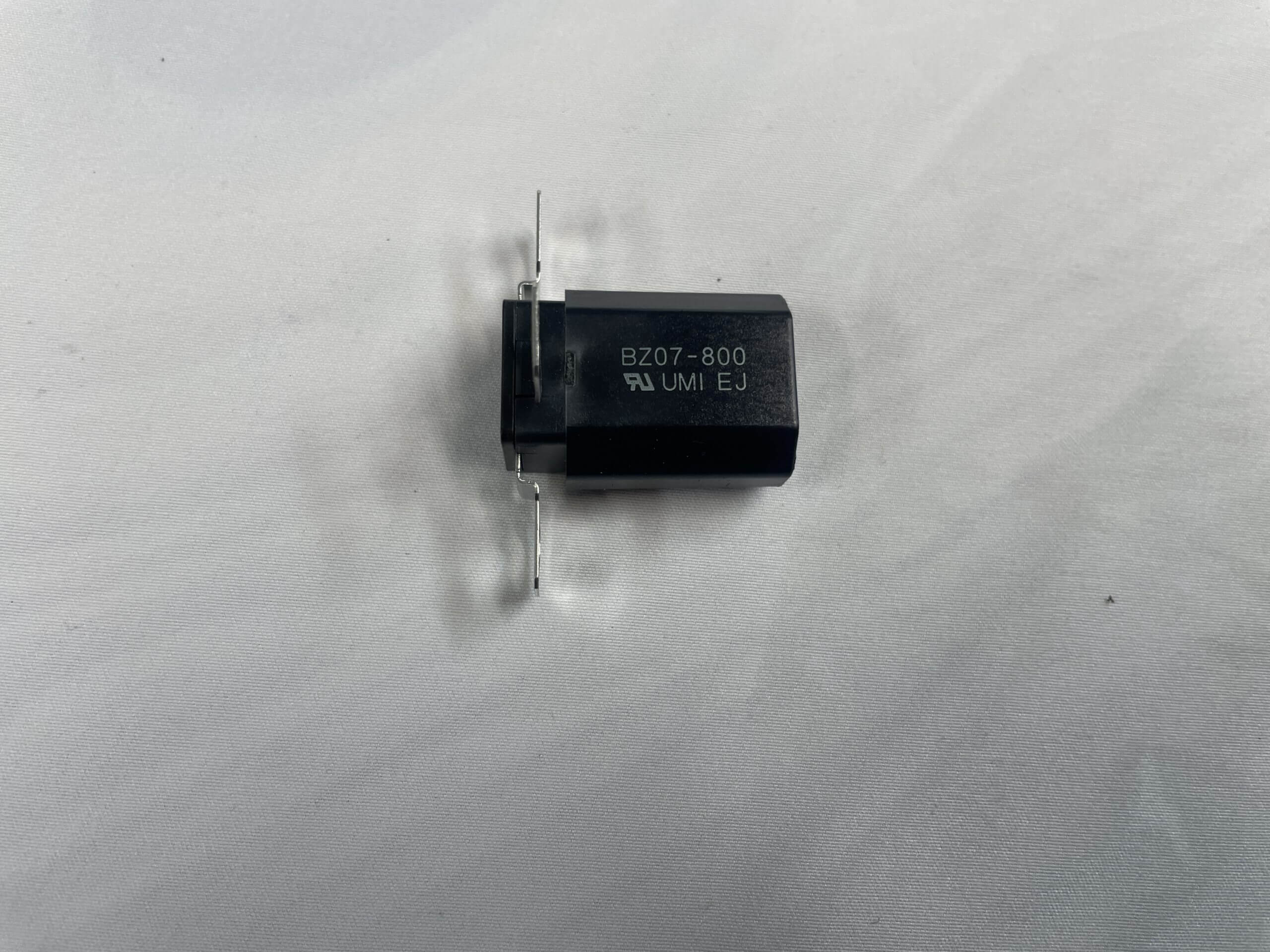

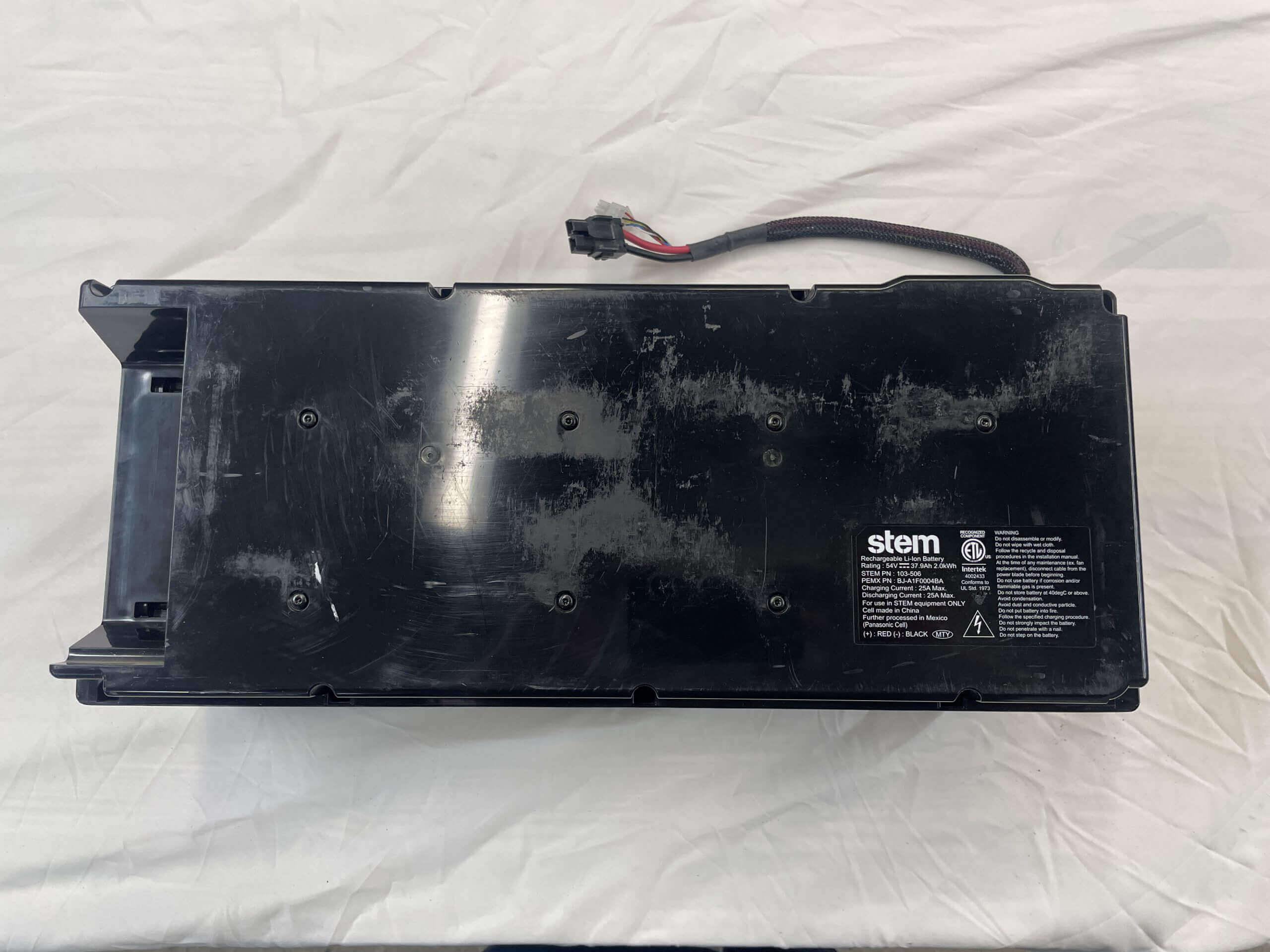

This battery was used in the telecom industry and is replaced after a certain amount of hours used. The outside of the case says Panasonic, but there are Sanyo cells inside. They are the same company. The BMS is a tricky one, it has a built in power shutoff that is quite interesting. There is a thermal link that the BMS burns up to prevent use of the module after the BMS decides it's time to be replaced. Can be easily bypassed of course, which makes these batteries a prime candidate for second life. We have not had any luck engaging the BMS, so it is sold as non functioning. The BMS is very easy to desolder and remove, you can also cut the voltage taps if you don't have a soldering iron. The whole pack comes apart with a phillips screwdriver and a security T10 bit, long and narrow bit would make it easier. If you plan on removing cells, you will need a Security T9 bit as well.

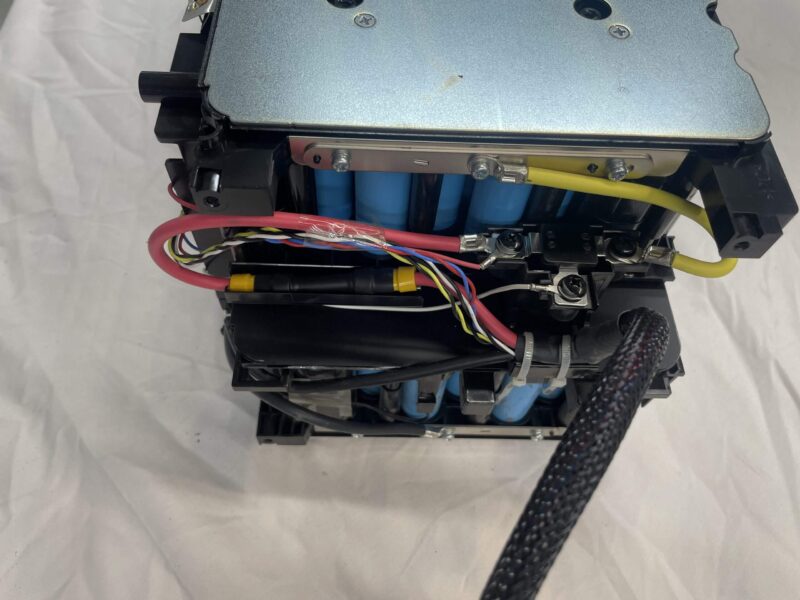

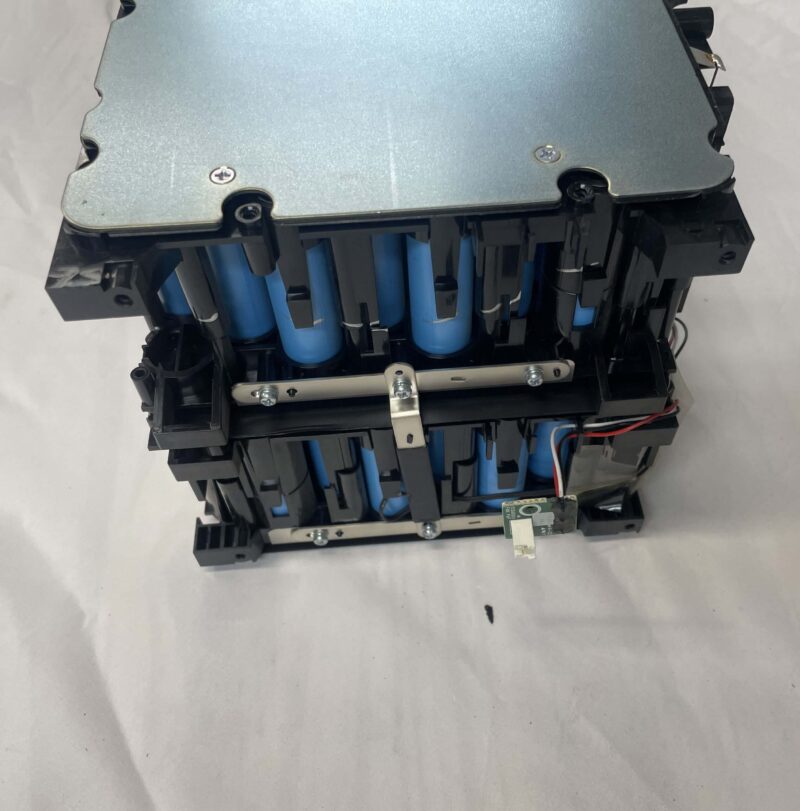

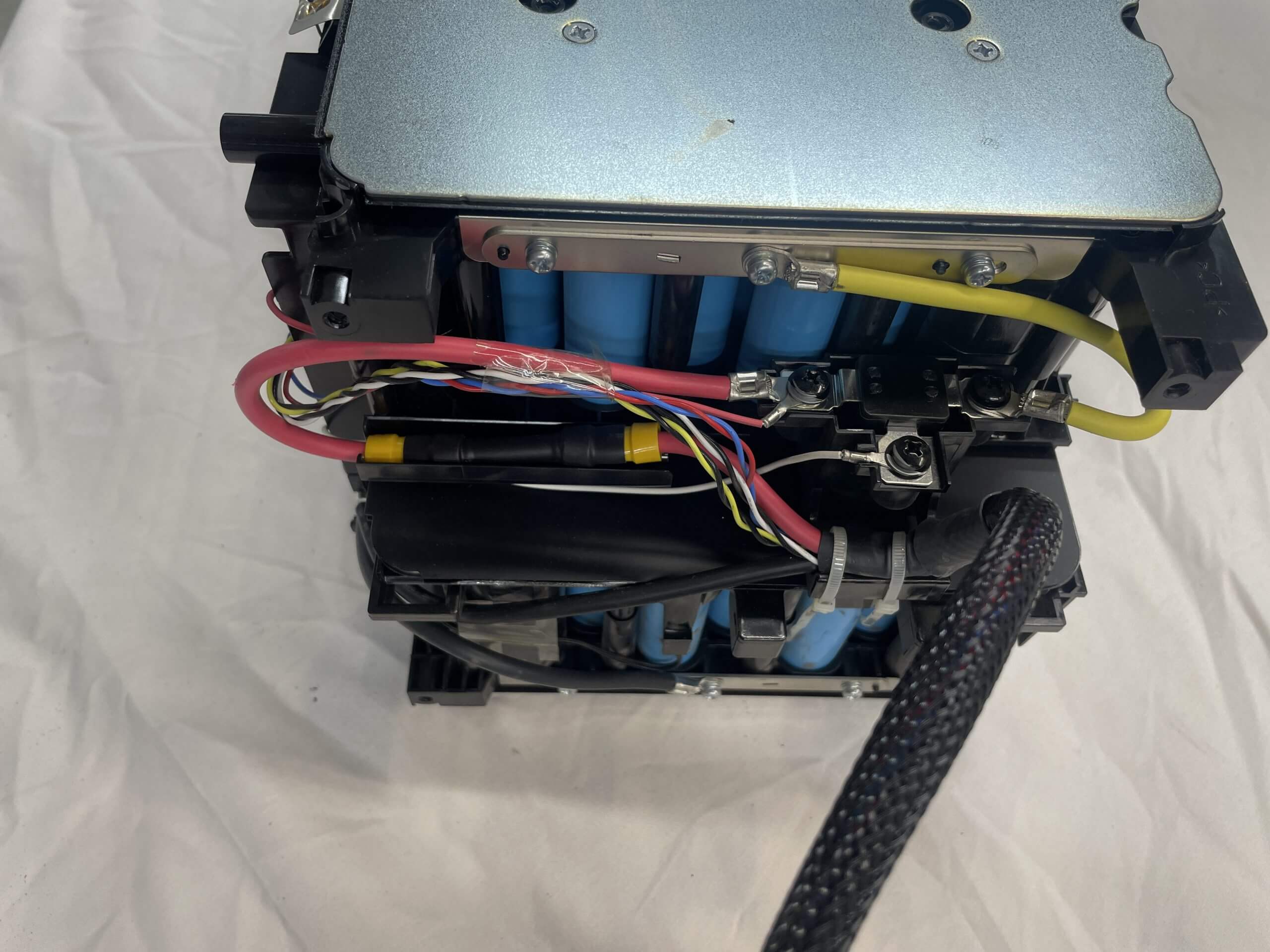

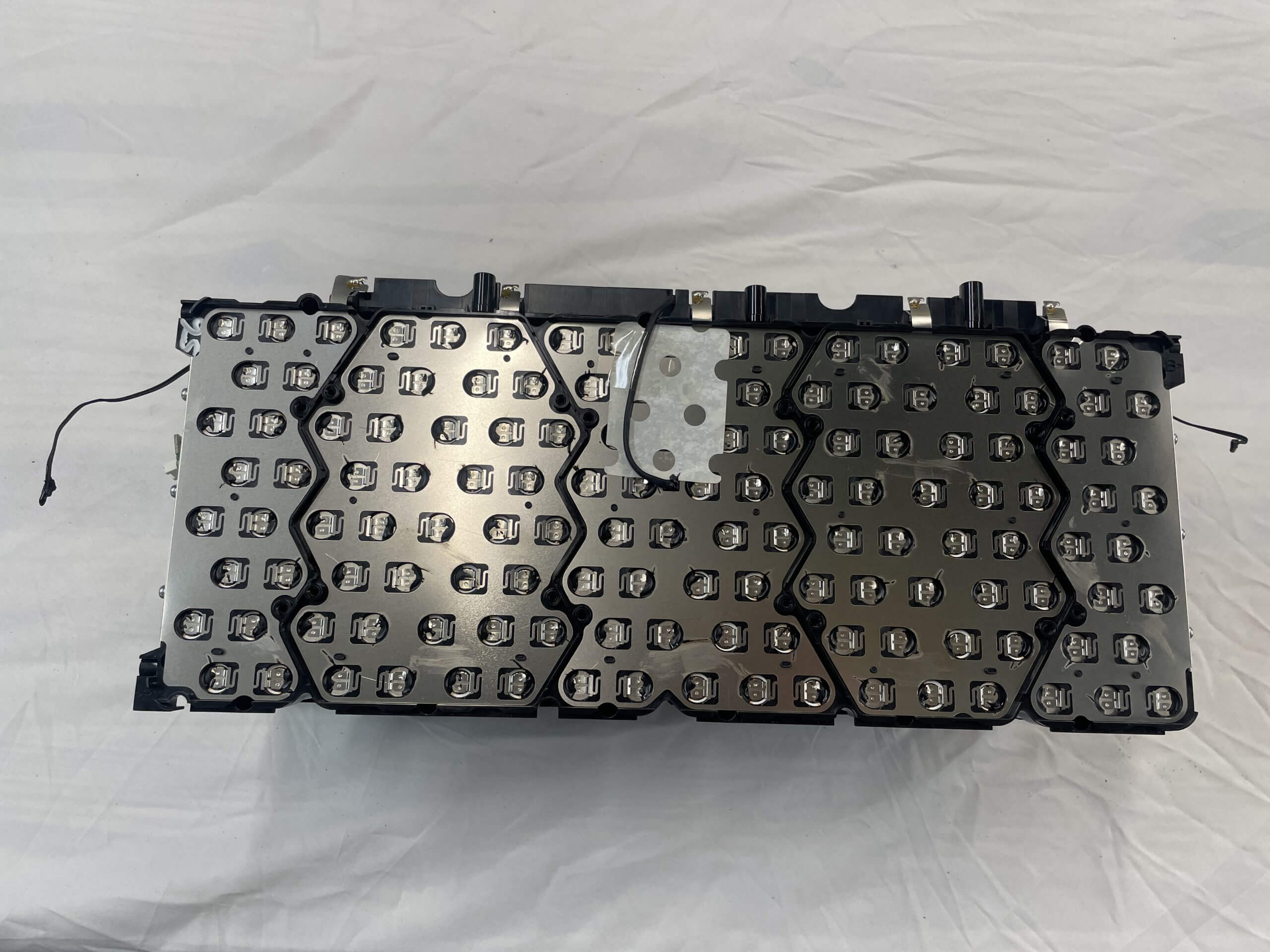

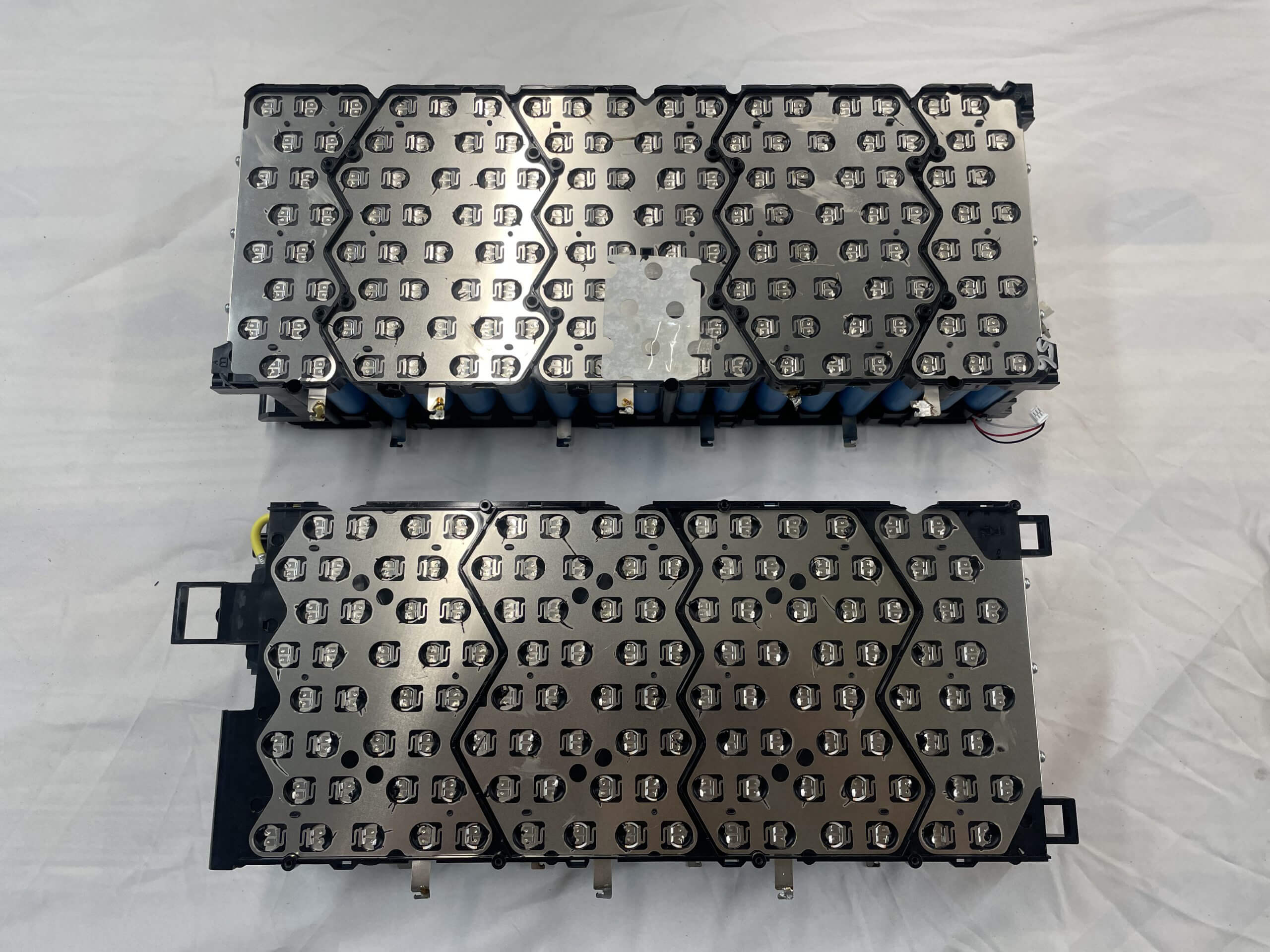

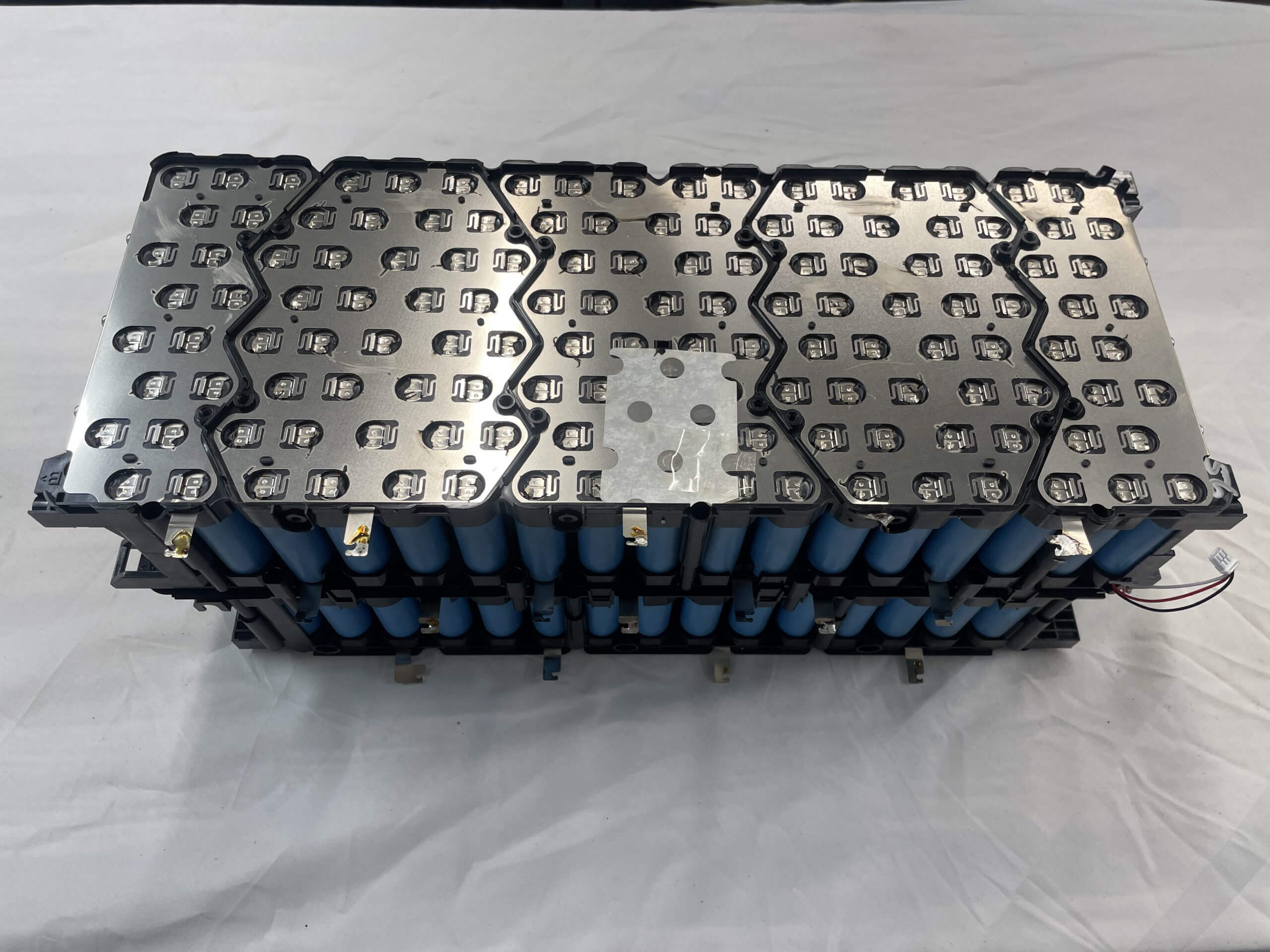

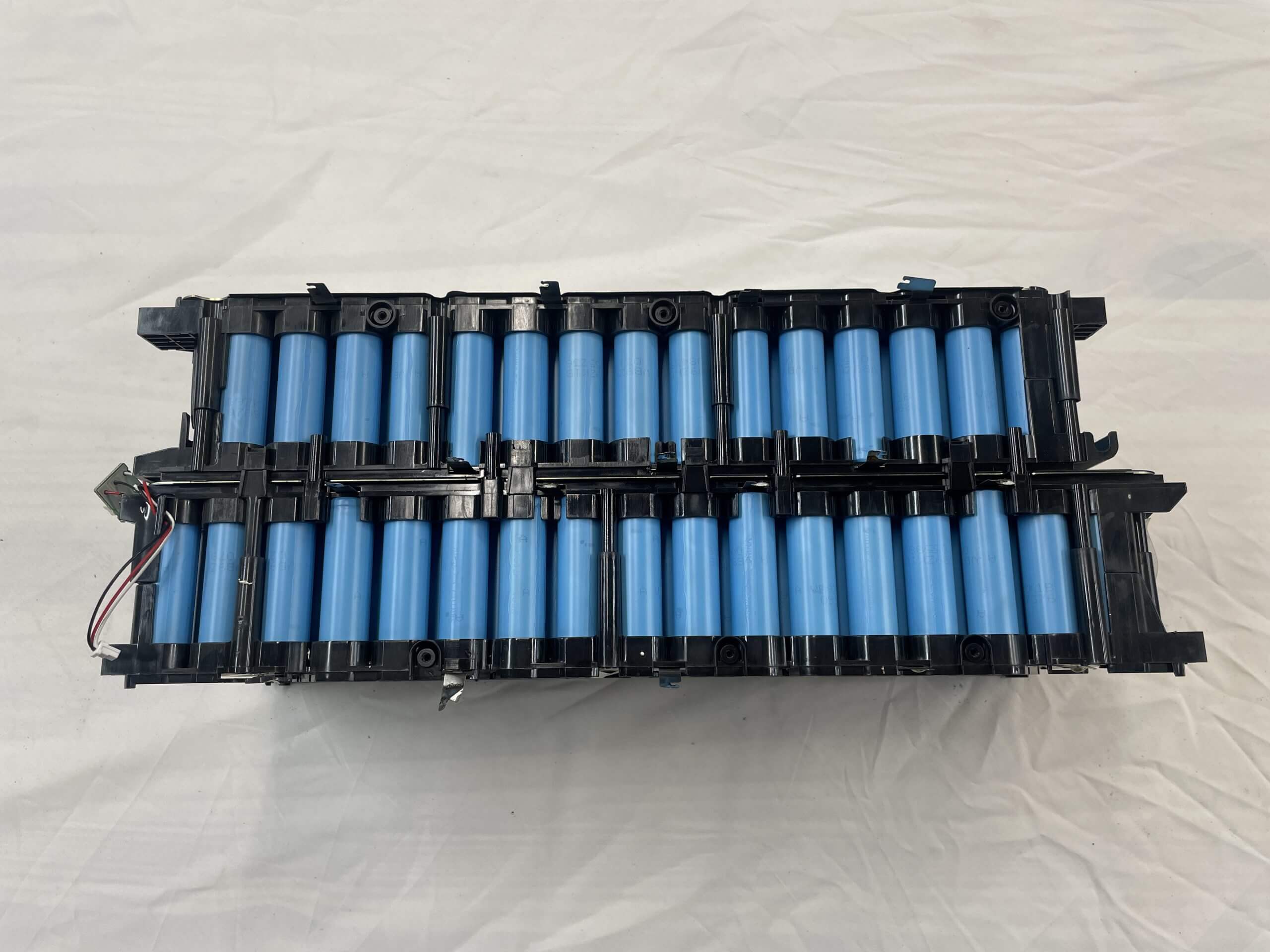

This module comes apart in two sections, 7s and 8s. The busbars are on philips screws for the two modules, splitting them apart is a matter of unscrewing screws.
We tested a module and got 38.6Ah.
Specifications
Nominal Module Energy: 2kWh, 37.9Ah Max Module Voltage: 63V
Nominal Cell Capacity: 2.5Ah Nominal Module Voltage: 55.5V
Module Configuration: 15s17p Min Module Voltage: 37.5V
Peak Discharge Current: 25A Max Cell Voltage: 4.2V
Nominal Discharge Current: 8.5A Nominal Cell Voltage: 3.7V
Peak Charge current: 25A Min Cell Voltage: 2.5V
Nominal Charge Current: 8.5A Weight: 38lb
Length:18.75 inches
Width: 7.75 inches
Height: 6.25 inches
